3 Ton Off Road Wheel Electric Pallet Truck Forklift

Specification:
Loadable tonnage: 3 tons

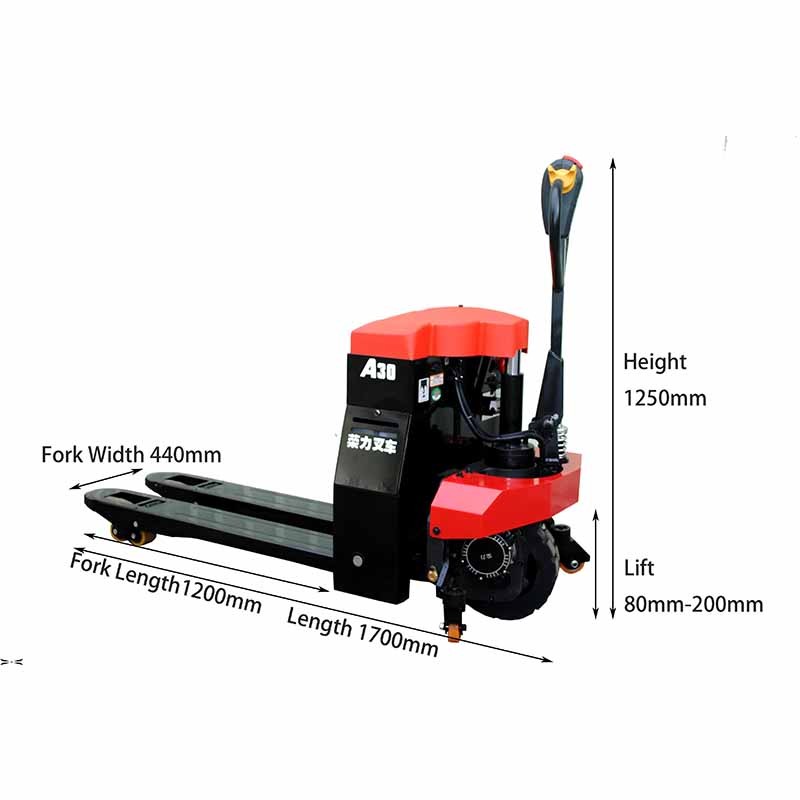

Vehicle size: 1700*685*1250mm
Single wooden box packaging size: 1730*695*1265mm (L-shaped packaging)
Body weight: 270kg

Wooden box weight: about 300kg

Battery specifications:
Type: Lead-acid battery
Dimensions (length × width × height): 317*275*201mm
Capacity: 48V 32Ah
Weight: 36.6KG
Quantity: 1 set of 4 pieces
Other parameters:

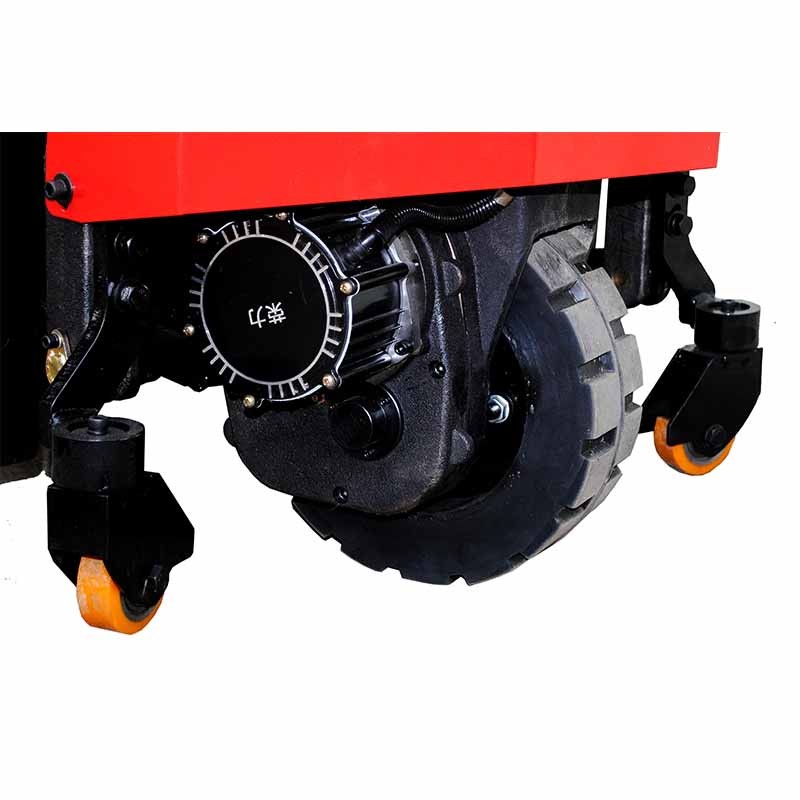

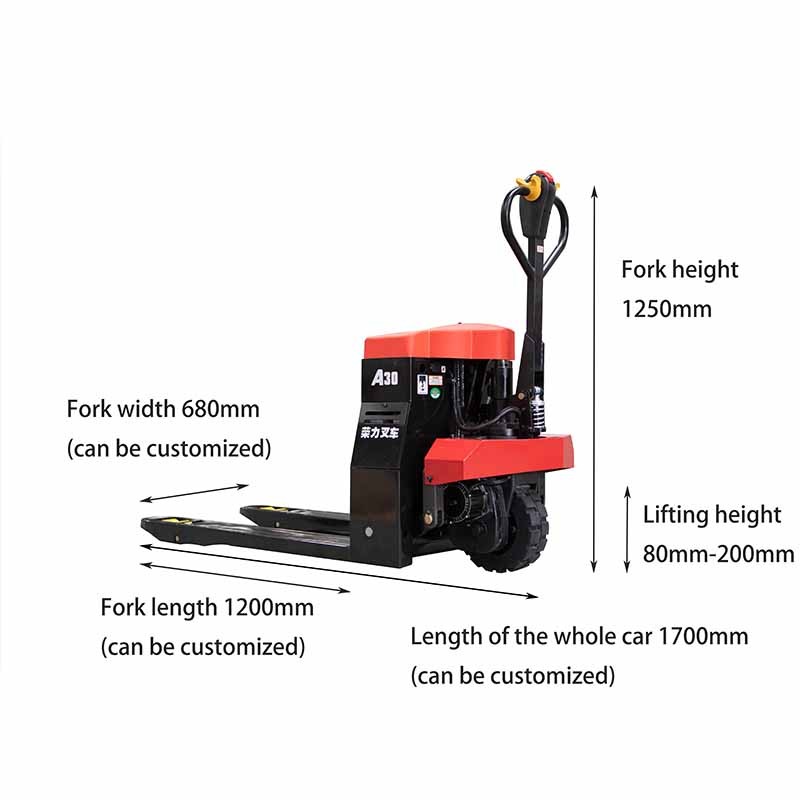

Vehicle size:1700*685*1250	Driving wheel size: 300*100mm
Fork length: 1200mm	Fork outer width: 685/550mm
Maximum height of fork surface from ground: 200mm	Minimum height of fork surface from ground: 80mm
Empty speed: 5KM/H	Maximum design load: 3.03 tons
Motor power: 1500W	Controller power: 1500W
Lifting speed: no load/full load 45/40	Descending speed: no load/full load 60/65
Vehicle type: Pedestrian	Lifting method: fully electric
Vehicle mass: 270Kg	Braking method: automatic electronic brake

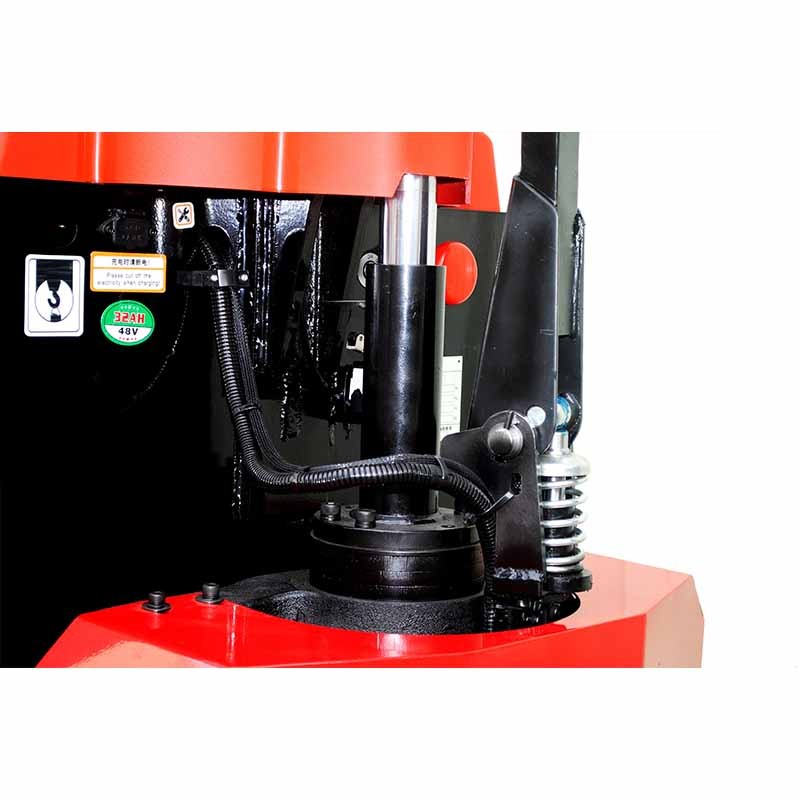

Slope: no load/full load 30°/10°	Oil cylinder: one-piece integral casting pump

Product introduction

This is an optimized web page content introducing [RL3T-001 - 3-ton off-road electric forklift]
3-ton all-terrain wheel electric forklift is a powerful and efficient 3-ton all-terrain wheel electric forklift, specially designed for the needs of working in various terrains. Whether it’s a muddy construction site, rugged mountain roads, or uneven warehouse floors, this forklift can handle it with ease.

Main Feature

Powerful load capacity: This electric forklift can carry up to 3 tons of cargo to meet your daily moving and loading tasks.
Off-road wheel design: Equipped with wear-resistant and durable off-road tires to ensure smooth operation in various terrains and improve operating efficiency.
Compact size: With a volume of 1700mm (length) × 685mm (width) × 1250mm (height), it can be operated flexibly even in a small space.
Sturdy body: The body weighs 270kg and has a solid structure to ensure durability for long-term use.
Environmentally friendly battery: Equipped with a high-performance lead-acid battery to provide long-term continuous power while reducing environmental pollution.
Battery type: Lead-acid battery
Battery size: 1000mm × 500mm × 400mm
Battery capacity: 48V 32Ah
Applicable scene
The 3-ton off-road electric forklift is suitable for handling various complex terrains, including construction sites, farmland, logistics centers and warehouses. Its powerful off-road capabilities and efficient electric drive system make it your best choice for efficient handling.

Other parameters

Driving wheel size: 300mm × 100mm
Maximum design load: 3.03 tons
Motor power: 1500W
Controller power: 1500W

Summarize

By choosing a 3-ton all-terrain electric forklift, you will have a reliable handling tool that can not only cope with various harsh working environments, but also improve your work efficiency and reduce labor costs. Contact us now for more product details and offers!
