Specification:
Loadable tonnage: 3 tons

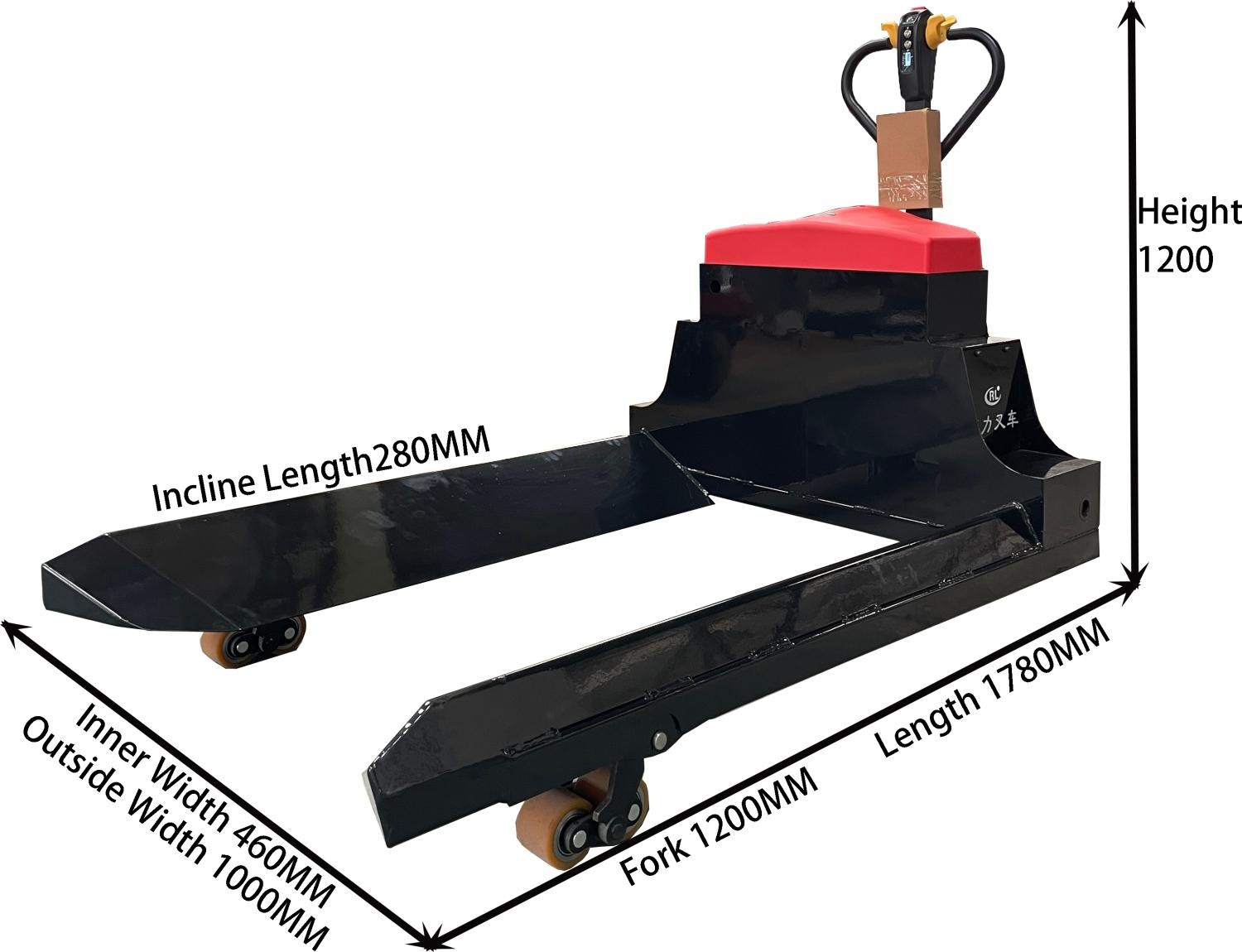

Vehicle size: 1780*1000*1200mm
Single wooden box packaging size: 1820*1030*1250mm (L-shaped packaging)
Body weight: 290kg
Wooden box weight: about 300kg
Battery specifications:
Type: Lead-acid battery
Dimensions (length × width × height): 317*275*201mm
Capacity: 48V 32Ah
Weight: 36.6KG
Quantity: 1 set of 4 pieces
Other parameters:
|
Vehicle size:1780*1000*1200 |
Driving wheel size: 210*100mm |
|
Fork length: 1200mm |
Fork outer width: 1000mm |
|
Maximum height of fork surface from ground: 200mm |
Minimum height of fork surface from ground: 80mm |
|
Empty speed: 5KM/H |
Maximum design load: 3.03 tons |
|
Motor power: 1200W |
Controller power: 1200W |
|
Lifting speed: no load/full load 45/40 |
Descending speed: no load/full load 60/65 |
|
Vehicle type: Pedestrian |
Lifting method: fully electric |
|
Vehicle mass: 290Kg |
Braking method: automatic electronic brake |
|
Slope: no load/full load 30°/10° |
Oil cylinder: one-piece integral casting pump |
Product introduction

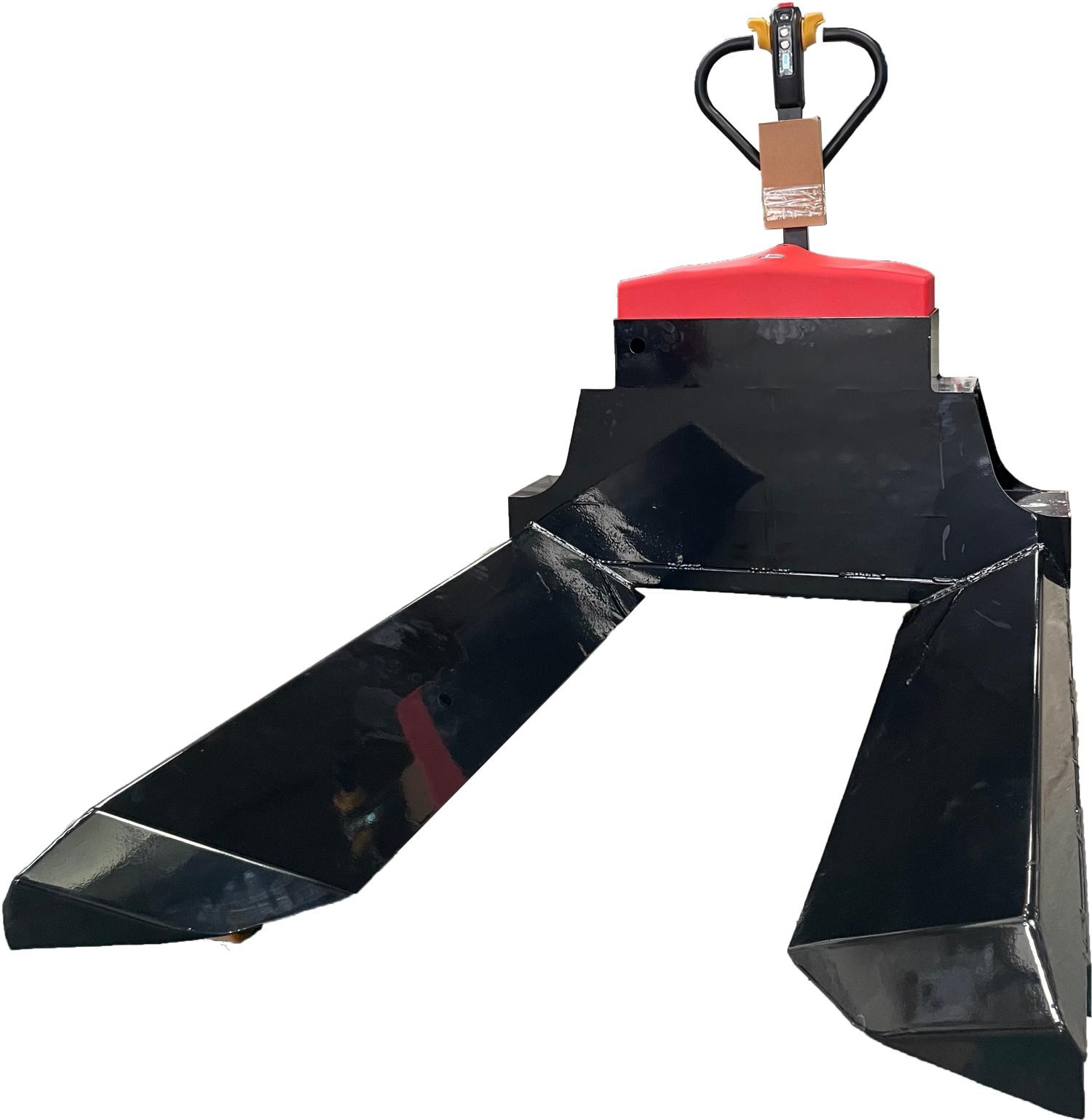

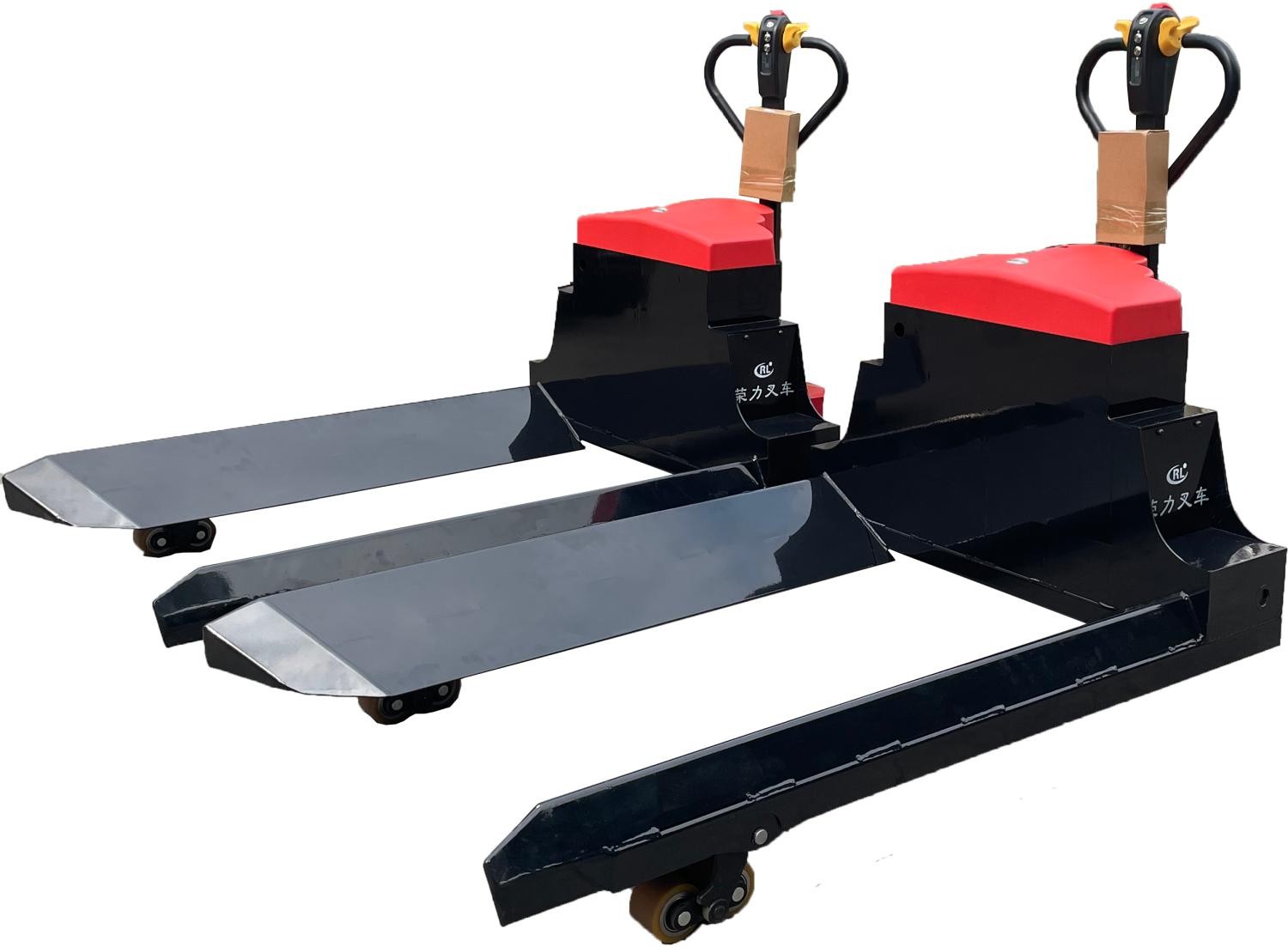

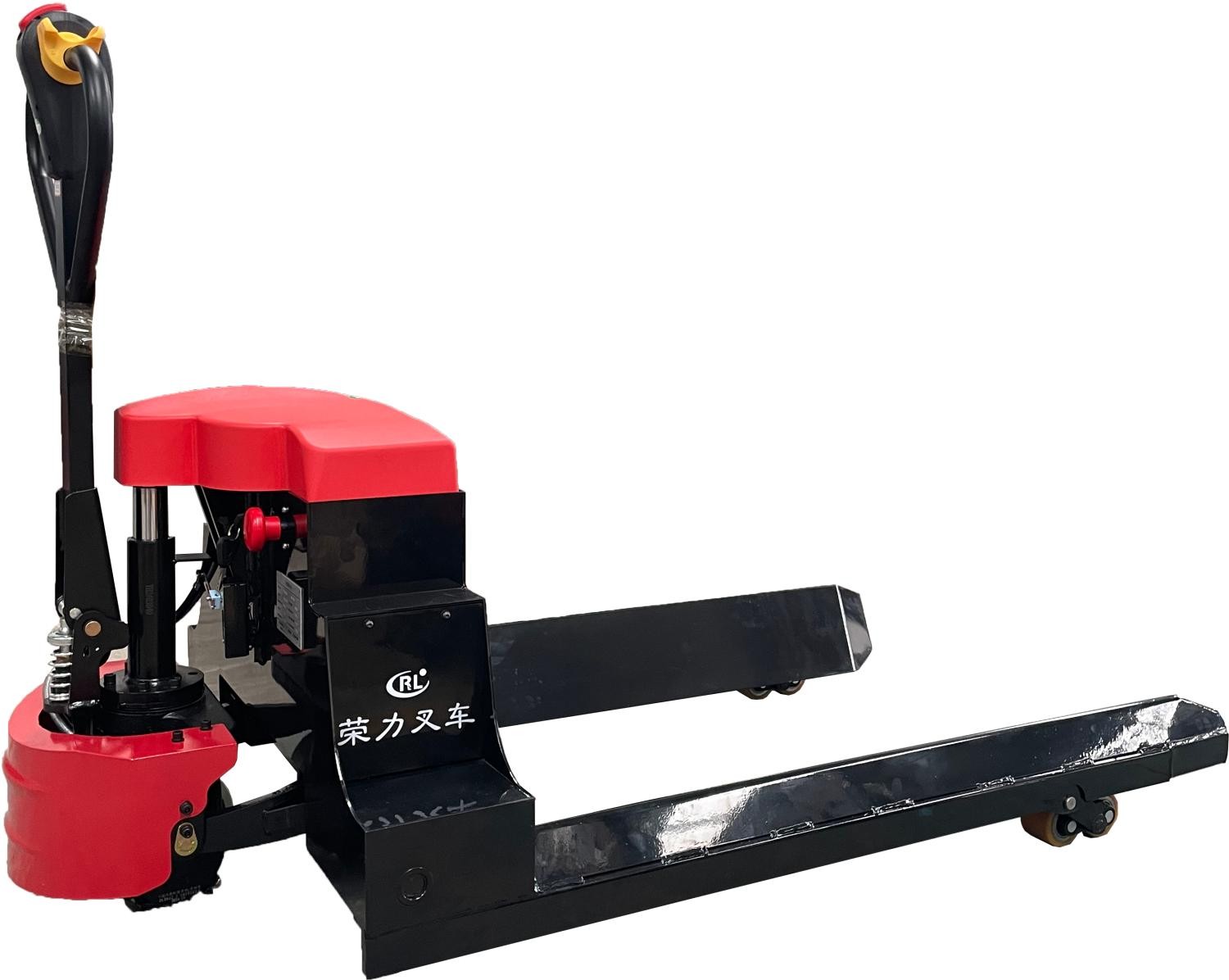

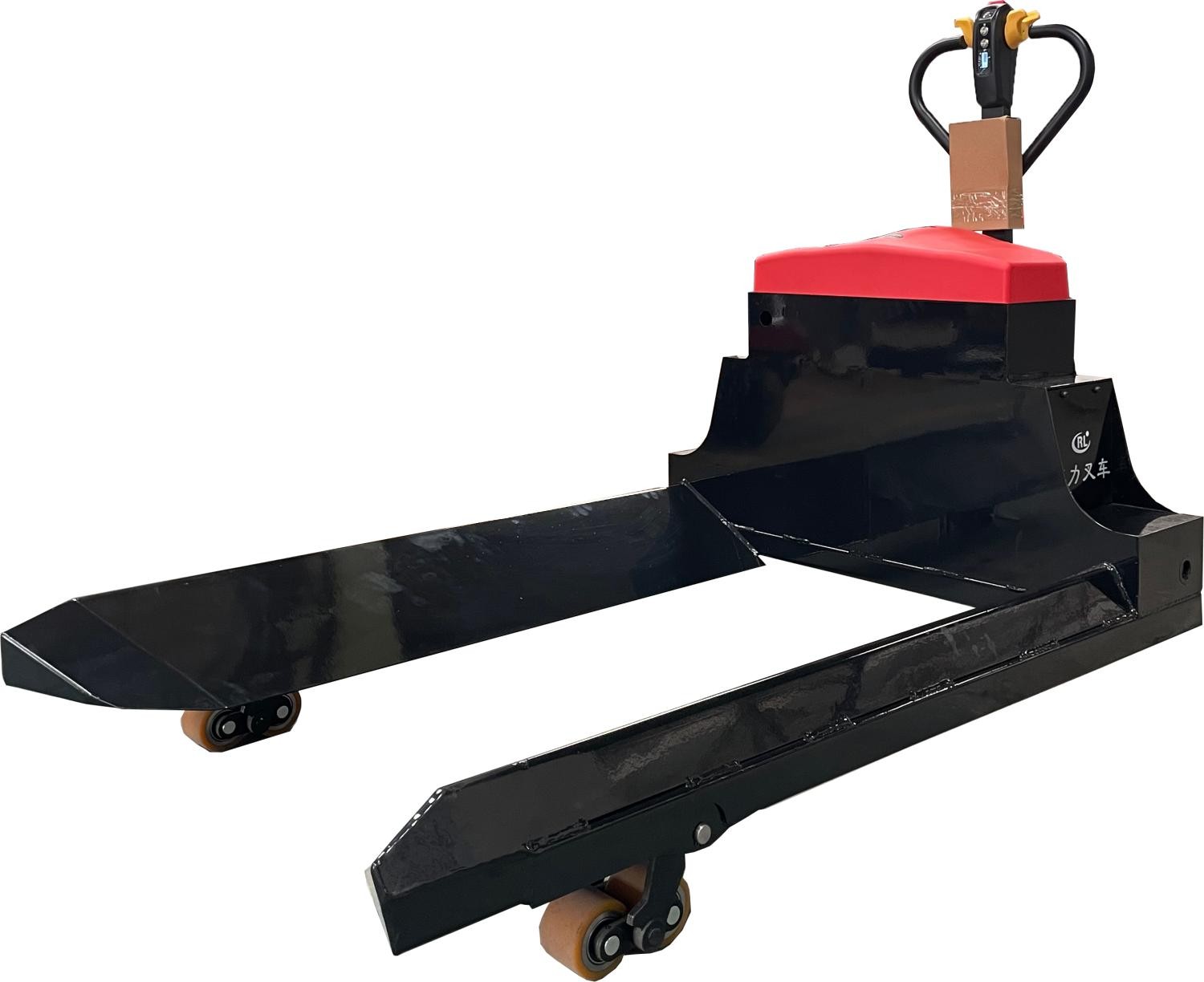

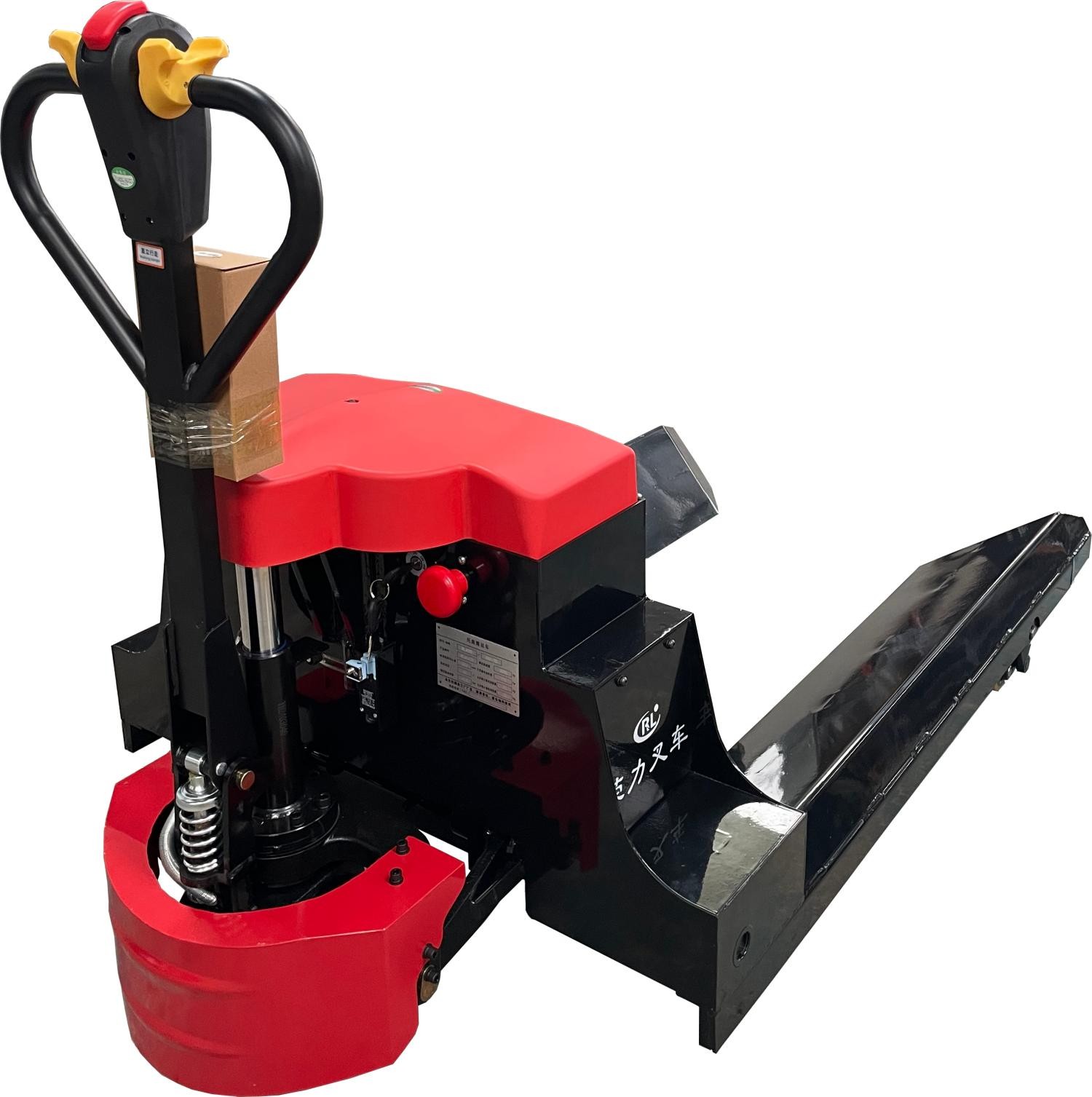

Model: RL3T-EPTP01 - 3-ton full-electric paper tube forklift
RL3T-EPTP01 is a full-electric forklift designed for handling paper tubes, with strong load capacity and flexible operation performance. Its main features include efficient electric drive system, sturdy body structure and excellent safety performance. It is suitable for various warehousing, logistics and manufacturing environments, especially in the paper products industry.
Main features
Strong load capacity: Maximum load capacity of 3 tons, suitable for heavy paper tube handling needs.
Compact design: The vehicle size is 178010001200 mm, which can be flexibly operated in narrow spaces.
Efficient battery system: Equipped with 48V 32Ah lead-acid batteries, a group of 4, to ensure long-term operation.
Sturdy and durable: The vehicle weighs 290kg, and the cylinder design of the integral casting pump is adopted, which increases the durability and stability of the equipment.
Fully electric lifting: The lifting speed is 45mm/s when empty and 40mm/s when fully loaded, which improves the working efficiency.
Safety performance: Equipped with an automatic electronic brake system to ensure safe operation.
Excellent climbing ability: The maximum climbing gradient is 30° when empty and 10° when fully loaded, which can adapt to a variety of working environments.
Convenient transportation: The packaging size of a single wooden box is 182010301250mm, and the weight of the wooden box is about 330kg, which is convenient for transportation and storage.
Applicable scenarios
Warehousing and logistics centers: In warehouses where paper tubes need to be frequently handled, RL3T-EPTP01 can greatly improve work efficiency.
Manufacturing plants: especially suitable for internal handling operations of paper product manufacturers.
Large supermarkets and shopping malls: suitable for sorting and transporting goods in narrow aisles.
Terminals and ports: excellent performance in port terminal operations that require efficient handling of heavy paper tubes.
Summary
RL3T-EPTP01 3-ton fully electric paper tube forklift is an efficient, sturdy and safe handling equipment. Its strong load capacity and fully electric operation design enable it to perform well in various industrial and commercial applications, especially suitable for handling and stacking paper tubes. Whether in a warehousing and logistics center or a manufacturing plant, this forklift is an indispensable assistant.
