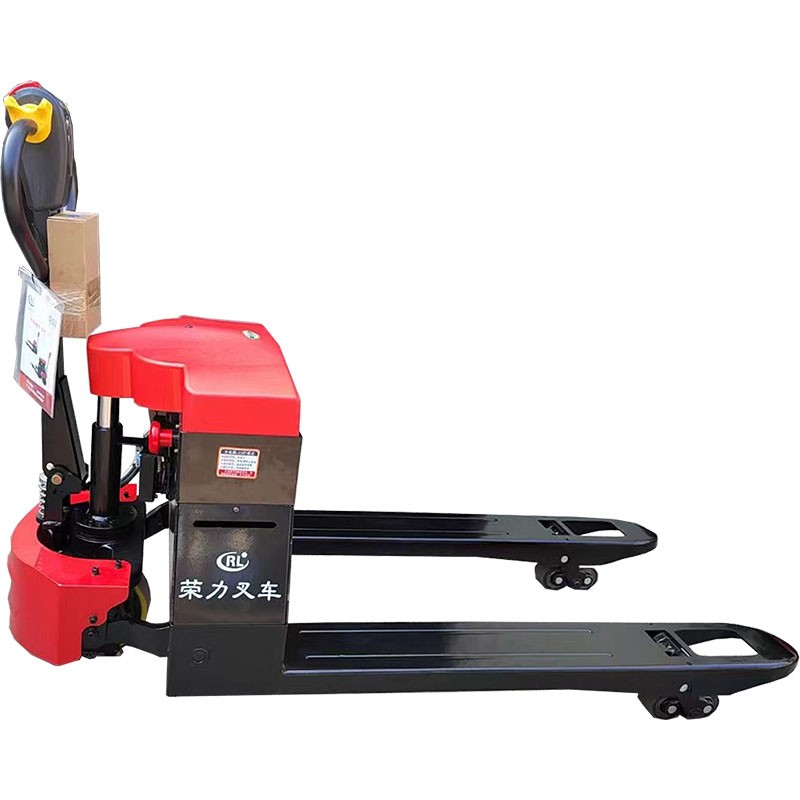

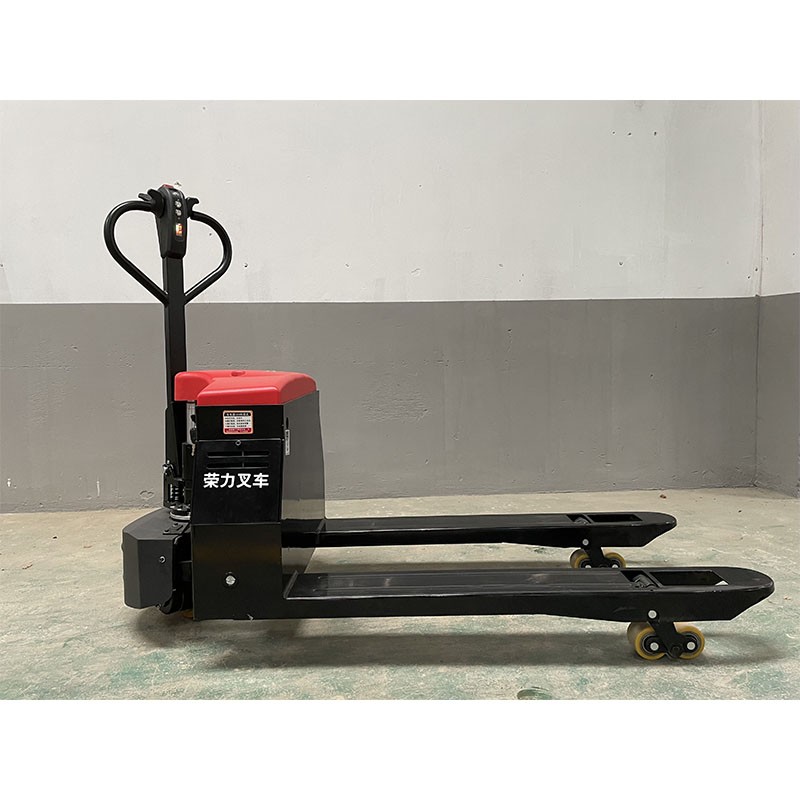

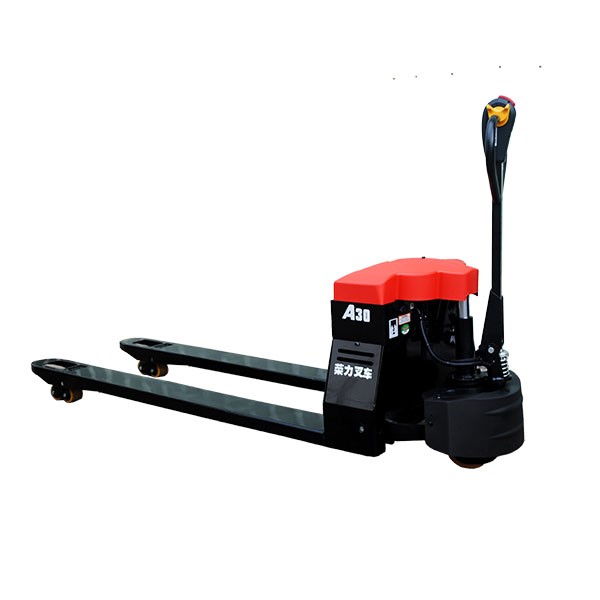

3 Ton Electric Pallet truck Warehouse Forklift
Specification:
Loadable tonnage: 3 tons
Vehicle size:1700*685*1250
Wooden box packaging size: 2280*810*920mm (2 units in 1 wooden box)
Body weight: 270kg
Wooden box weight: about 580kg

Battery specifications:
Type: Lead-acid batteryType: Lead-acid battery
Dimensions (length × width × height): 317*275*201mm
Capacity: 48V 32Ah
Weight: 36.6KG
Quantity: 1 set of 4 pieces

Other parameters:

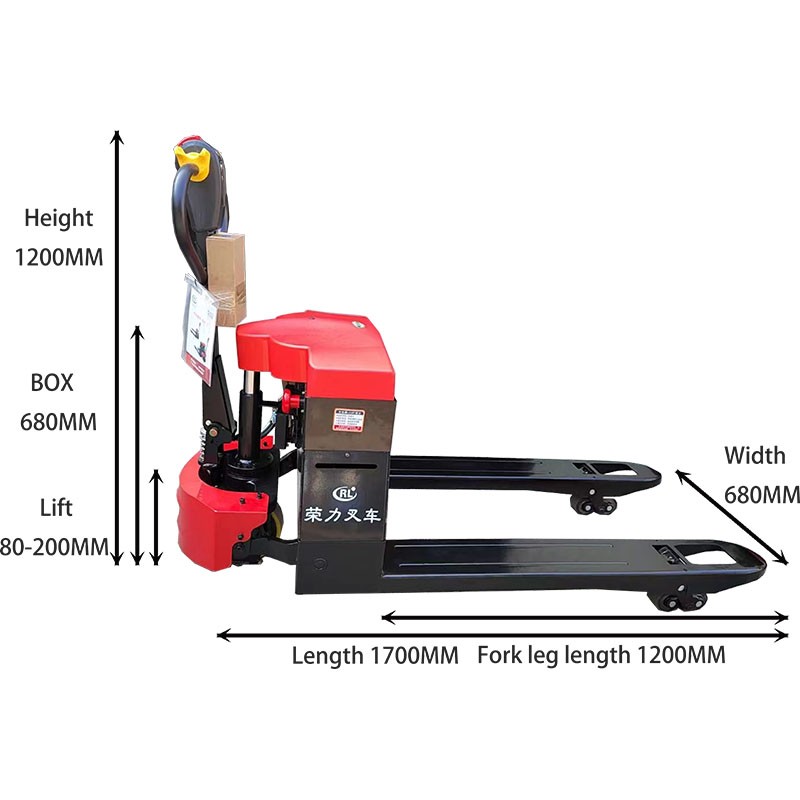

Vehicle size:1700*685*1200	Driving wheel size: 210*100mm
Fork length: 1200mm	Fork outer width: 685/550mm
Maximum height of fork surface from ground: 200mm	Minimum height of fork surface from ground: 80mm
Empty speed: 5KM/H	Maximum design load: 3.03 tons
Motor power: 1500W	Controller power: 1500W
Lifting speed: no load/full load 45/40	Descending speed: no load/full load 60/65
Vehicle type: Pedestrian	Lifting method: fully electric
Vehicle mass: 260Kg	Braking method: automatic electronic brake
Slope: no load/full load 30°/10°	Oil cylinder: one-piece integral casting pump

Product introduction

This is an optimized web page content introducing [RL3T-002 - 3-ton field truck forklift]
The RL3T-002 is an efficient 3-tonne field truck forklift designed for the handling needs of a variety of industrial and commercial sites. Whether in a warehouse, factory or logistics center, this forklift provides you with outstanding performance and reliable service.

Main Feature

Powerful load capacity: The 3-ton field truck forklift can carry up to 3 tons of cargo, easily handling various heavy-duty handling tasks.
Compact design: The volume is 1200mm (length) × 680mm (width) × 440mm (height), allowing it to be operated flexibly in narrow spaces.
Sturdy body: The body weighs 260kg and has a solid structure to ensure durability for long-term use.
High-efficiency battery: Equipped with a high-performance lead-acid battery, providing strong and long-lasting power.
Battery type: Lead-acid battery
Battery size: 1000mm × 500mm × 400mm
Battery capacity: 48V 32Ah
Applicable scene
The 3-ton field truck forklift is suitable for handling work in a variety of industrial and commercial sites, including warehouses, factories, distribution centers and logistics parks. Its powerful load capacity and compact design make it your best choice for efficient transportation.

Other parameters

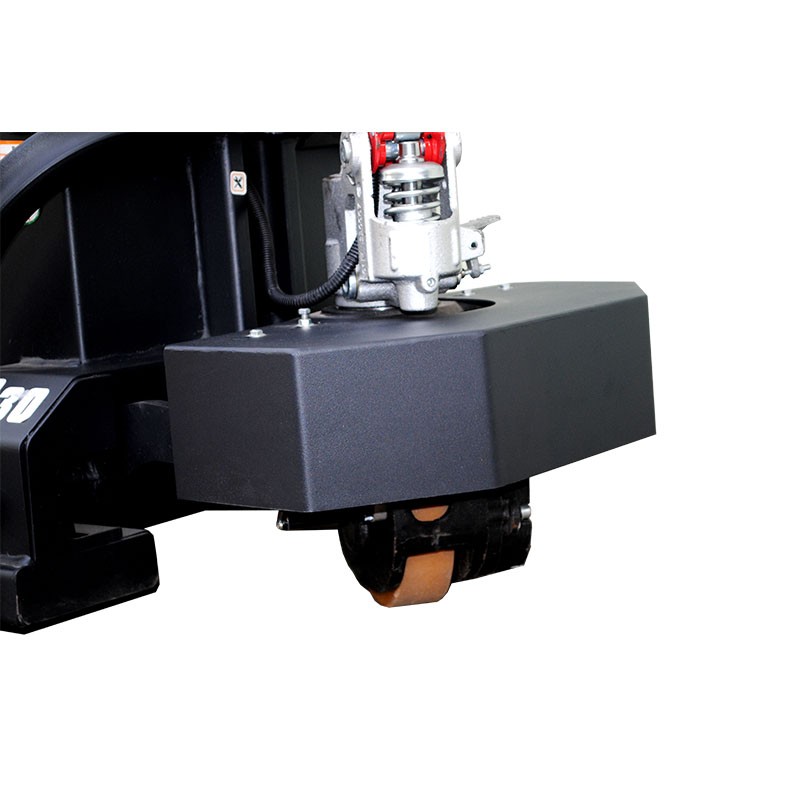

Driving wheel size: 210mm × 100mm
Maximum design load: 3.03 tons
Motor power: 1500W
Controller power: 1500W

Product advantages

Efficient operation: The powerful motor and high-capacity battery ensure that the forklift operates efficiently in busy work environments.
Environmental protection and energy saving: using electric drive to reduce carbon emissions and comply with modern environmental protection standards.
Easy to operate: The design is user-friendly and easy to operate. Even novices can get started quickly and improve work efficiency.

Summarize

RL3T-002 - 3-ton field truck forklift is your best tool for heavy-duty handling in various industrial and commercial sites. It not only has excellent performance, but also has the advantages of environmental protection and energy saving, helping you improve production efficiency and reduce operating costs. Contact us today for more product details and offers!
