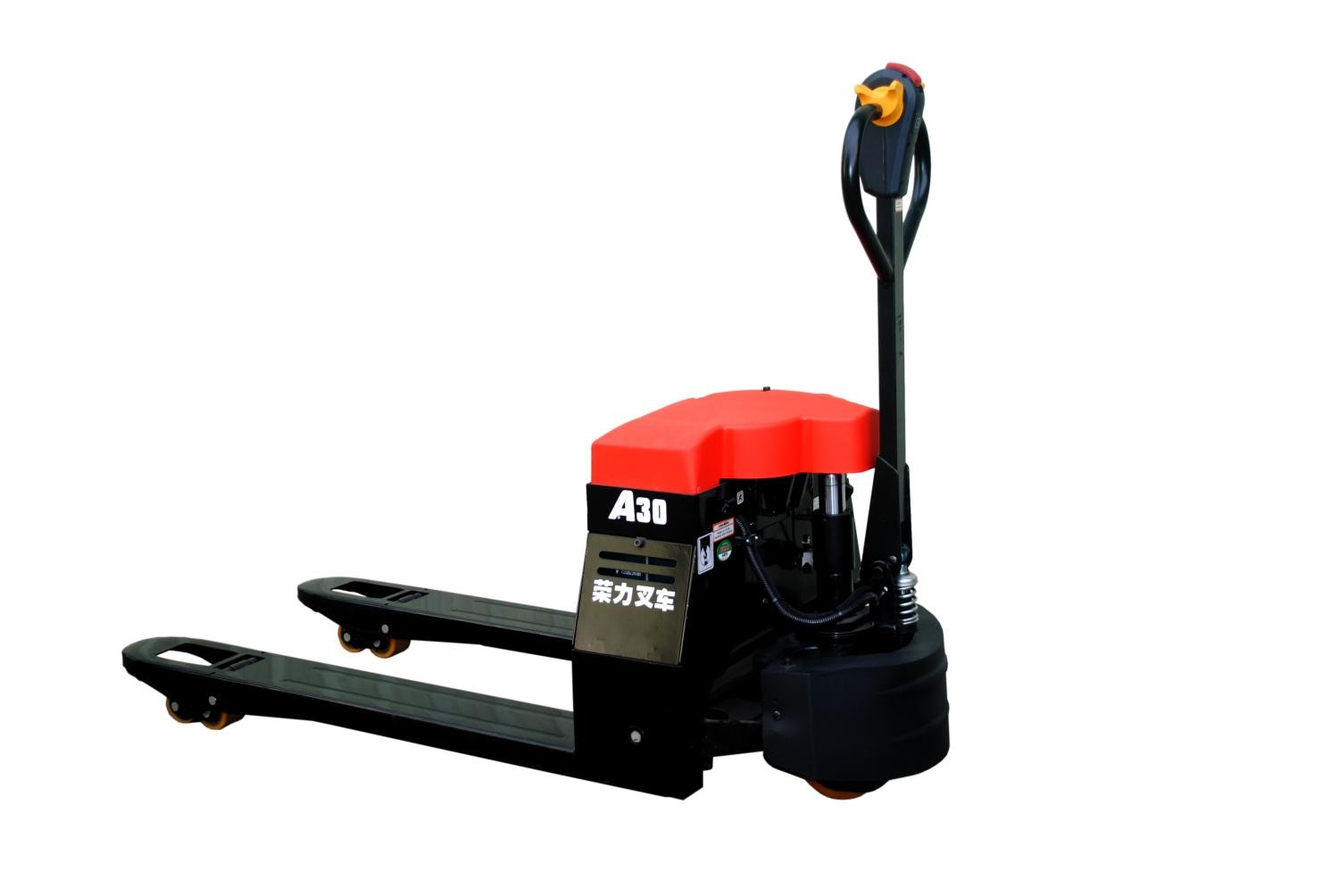

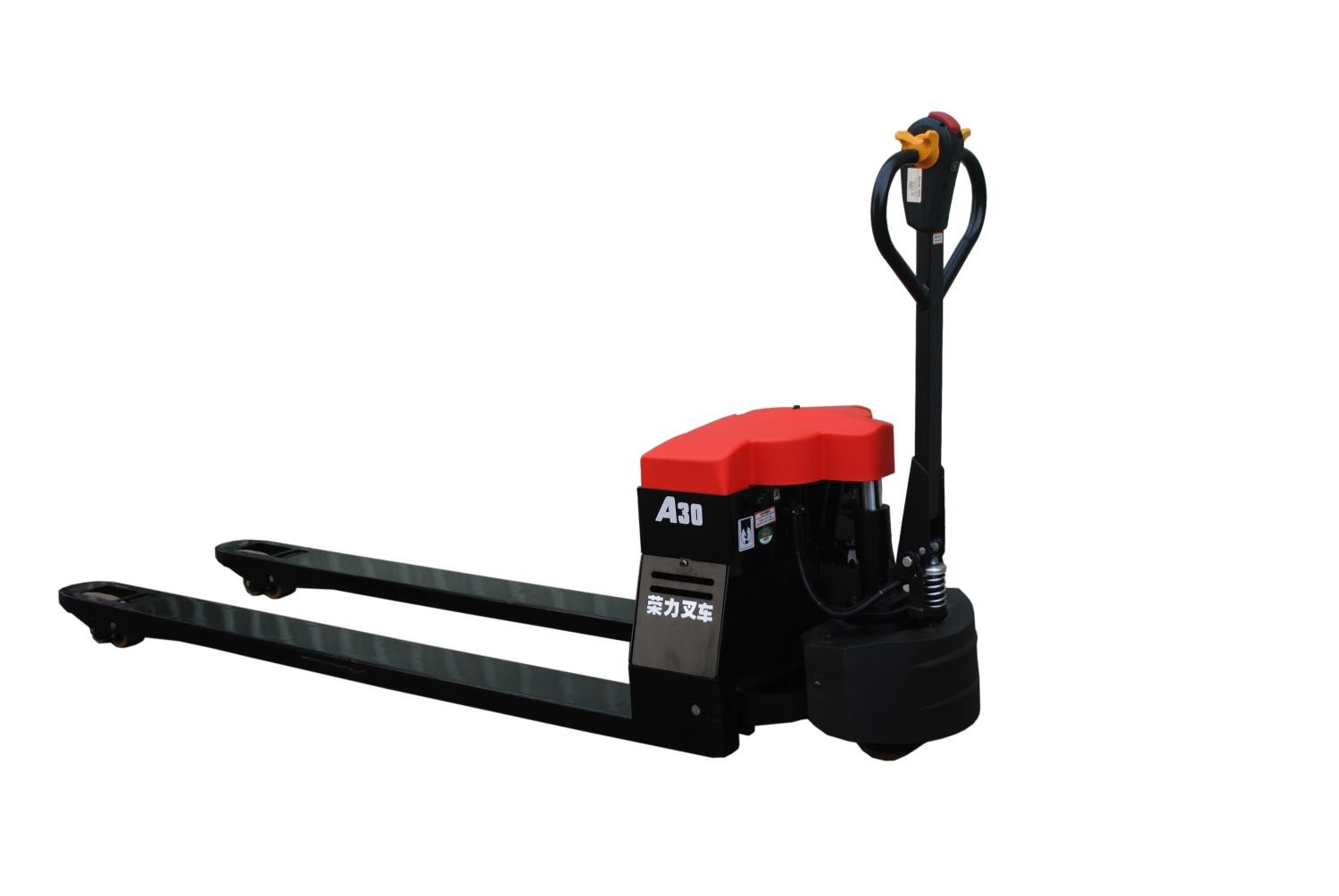

Model 26: RL3T-EPT5M-5m Special Customized Extended Length Forklift Truck
Loadable tonnage:3 tonsLoadable tonnage:3 tons
Dimension of whole truck:2300*685*1250mm
Single wooden box packing size:2360*695*1265mm (L-type packing)
Body weight: 290kg
Wooden case weight: about 320kg
Battery specifications:
Type: Lead-acid battery
Dimensions (length × width × height): 317*275*201mm
Capacity: 48V 32Ah
Weight: 36.6KG
Quantity: 1 set of 4 pieces
Other parameters
|
Vehicle size:2300*685*1250 |
Driving wheel size: 210*100mm |
|
Fork length: 1800mm |
Fork outer width: 685mm |
|
Maximum height of fork surface from ground: 200mm |
Minimum height of fork surface from ground: 80mm |
|
Empty speed: 5KM/H |
Maximum design load: 3.03 tons |
|
Motor power: 1200W |
Controller power: 1200W |
|
Lifting speed: no load/full load 45/40 |
Descending speed: no load/full load 60/65 |
|
Vehicle type: Walking type |
Lifting method: fully electric |
|
Vehicle mass: about 270kg |
Braking method: automatic electronic brake |
|
Slope: no load/full load 30°/10° |
Oil cylinder: one-piece integral casting pump |
Product introduction
Model: RL2T-EPT18 - 1800mm Extended Forklift Trucks
The RL2T-EPT18 is an Extended Tread Forklift Truck, designed for handling needs that require extra length of fork legs. With reliable performance and stable structure, it is suitable for various industrial and commercial scenarios.
Key Features
Extended Forklift Leg Design: Forklift leg length reaches 1800mm to meet the needs of special long cargo handling.
High loading capacity: the loadable tonnage is 3 tons, which is suitable for the handling of medium-sized goods.
Stable structure: adopts one-piece molding integral casting pump to ensure the stability and durability of the equipment.
All-electric lifting: adopts all-electric lifting system, fast lifting speed and convenient operation.
Walking vehicle type: easy to operate, suitable for handling operations in various environments.
Safety Brake: Equipped with automatic electronic brake to ensure the safety of the handling process.
Applicable Scenarios
Long Cargo Handling: Suitable for long cargo handling scenarios, such as pipes, timber, etc.
Medium-sized warehousing centers: used in medium-sized warehouses for cargo handling and stacking to improve the efficiency of warehousing.
Manufacturing factories: for cargo handling and loading and unloading inside production lines and factories.
Logistics Sorting Center: for cargo loading and unloading and sorting operations in logistics centers to improve logistics efficiency.
Summarize
The RL2T-EPT18 1800mm Extended Forklift Truck is a highly efficient, stable and specially customized handling equipment for various scenarios that require long cargo handling. Its extended leg design and all-electric lifting system enable it to perform well in scenarios such as warehousing centers, manufacturing plants and logistics sorting centers. This forklift will provide users with an efficient handling solution that enhances operational efficiency and safety.
