Specification:
Loadable tonnage: 3 tons
Vehicle size: customized width
Body weight: 270kg
Wooden box weight: about 300kg
Battery specifications:
Type: Lead-acid battery
Dimensions (length × width × height): 317*275*201mm
Capacity: 48V 32Ah
Weight: 36.6KG
Quantity: 1 set of 4 pieces
Other parameters:
|
Vehicle size:customized width |
Driving wheel size: 300*100mm |
|
Fork length: 1200mm |
Fork outer width: customized width |
|
Maximum height of fork surface from ground: 200mm |
Minimum height of fork surface from ground: 80mm |
|
Empty speed: 5KM/H |
Maximum design load: 3.03 tons |
|
Motor power: 1500W |
Controller power: 1500W |
|
Lifting speed: no load/full load 45/40 |
Descending speed: no load/full load 60/65 |
|
Vehicle type: Pedestrian |
Lifting method: fully electric |
|
Vehicle mass: 270Kg |
Braking method: automatic electronic brake |
|
Slope: no load/full load 30°/10° |
Oil cylinder: one-piece integral casting pump |
Product introduction

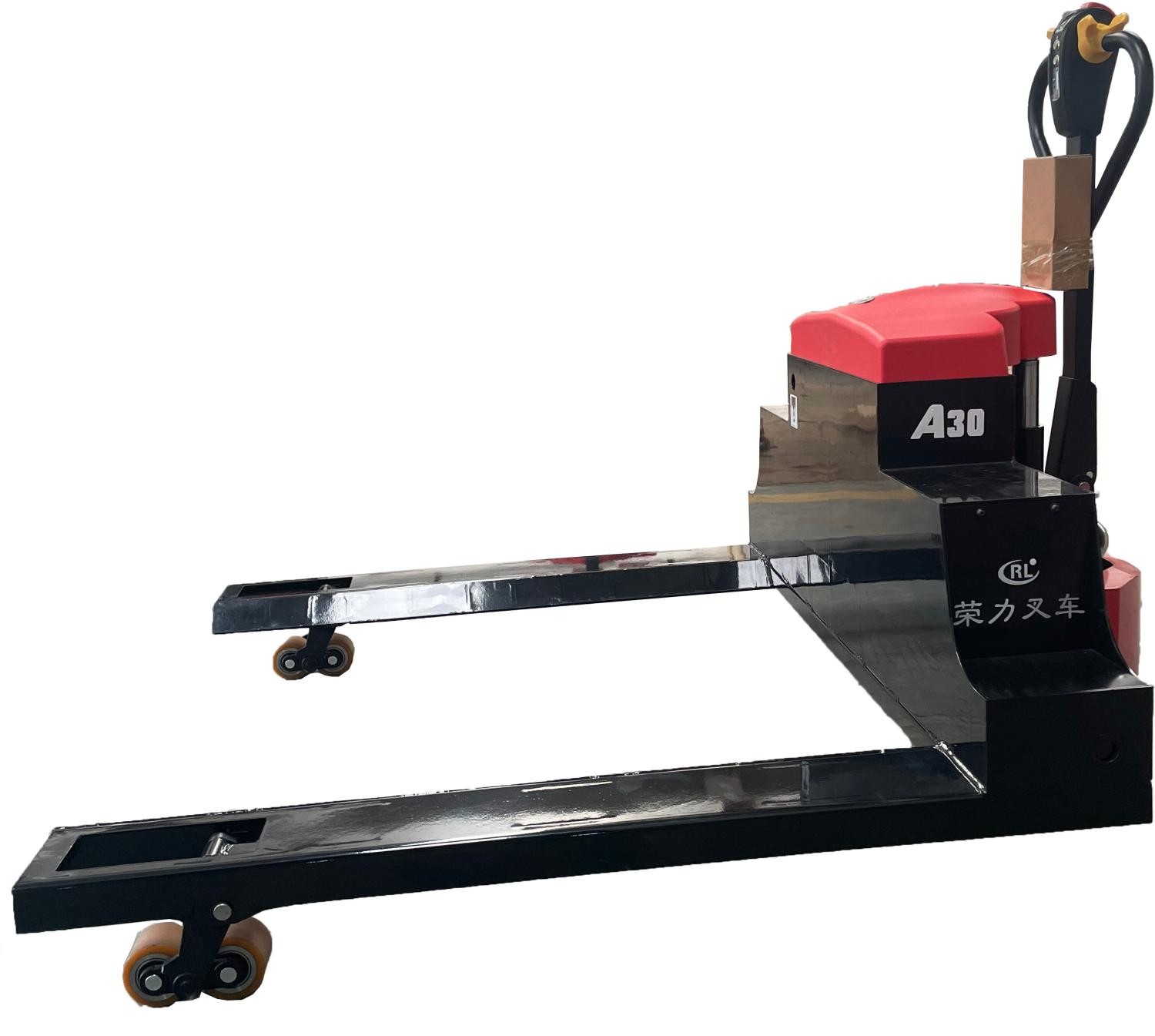

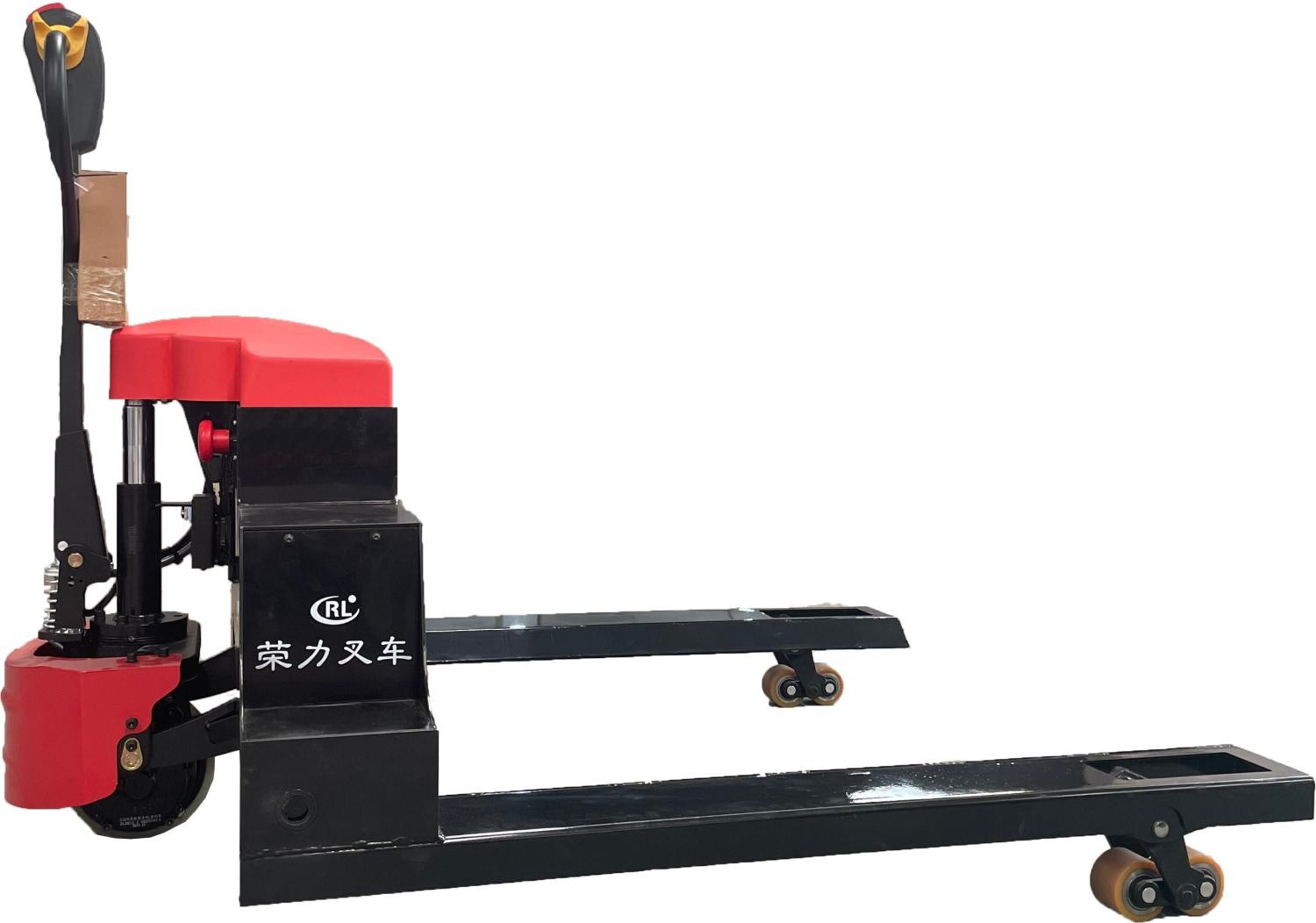

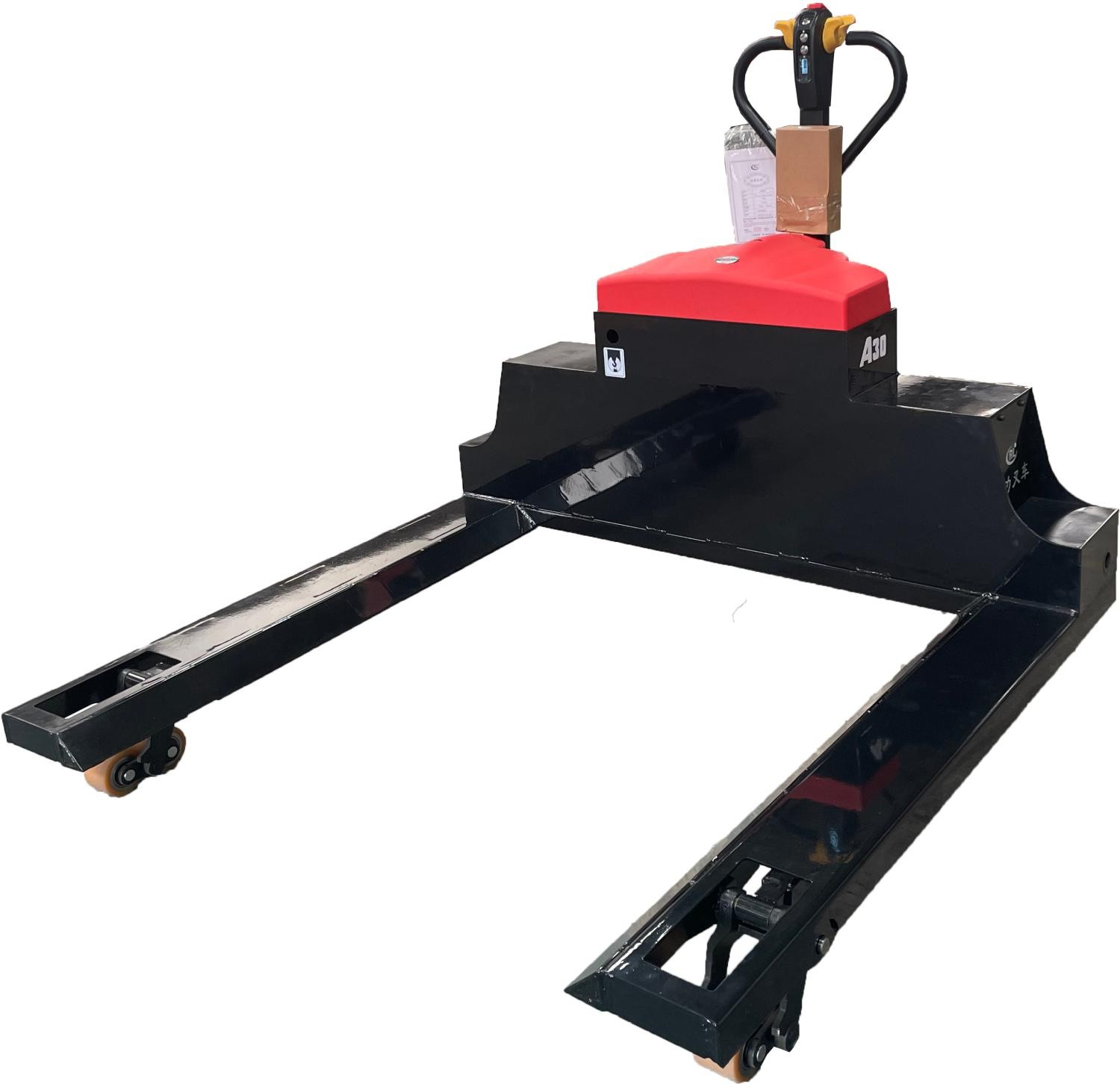

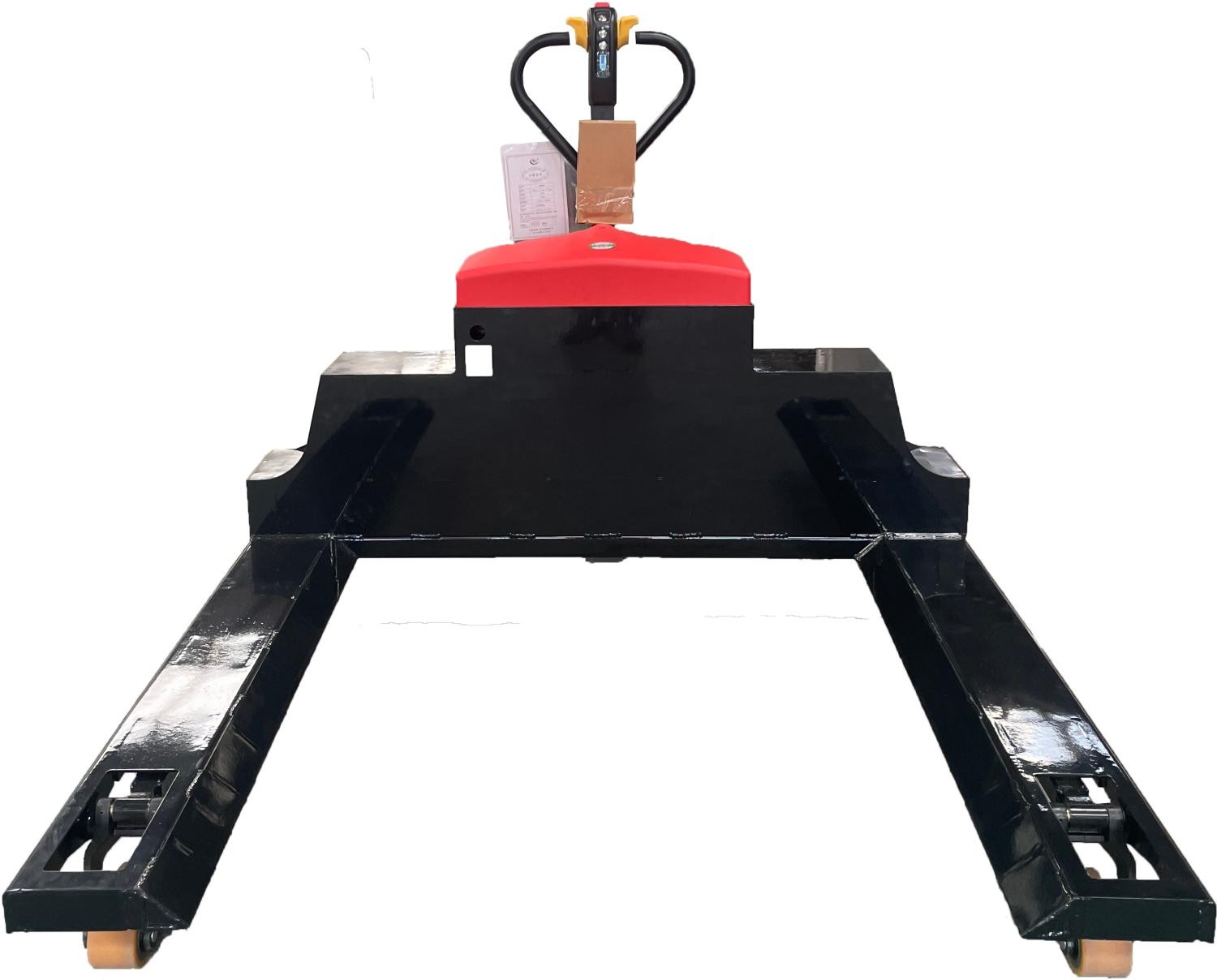

Model: RL3T-EPT08 - 3-ton electric forklift (customized width)
RL3T-EPT08 is a 3-ton electric forklift suitable for a variety of industrial and commercial environments. Its fork width can be customized according to user needs. The forklift combines an efficient electric drive system, a solid structure and excellent safety performance, suitable for heavy-duty handling needs in a variety of scenarios.
Main Features
Customized Width: The fork width can be customized according to customer needs, providing flexible handling solutions.
Powerful Load Capacity: The maximum load capacity is up to 3 tons, which can adapt to various heavy material handling needs.
Efficient Battery System: Equipped with 48V 32Ah lead-acid batteries, a set of 4, providing long-term continuous operation capabilities.
High-performance motor: 1500W motor and 1500W controller, ensuring strong power and stable performance.
All-electric lifting: The lifting speed is 45mm/s when unloaded and 40mm/s when fully loaded, which improves work efficiency.
Safety Performance: Equipped with automatic electronic brake system to ensure safe operation.
Excellent climbing ability: The maximum climbing grade is 30° when empty and 10° when fully loaded, which can adapt to various working environments.
Strong and durable: The vehicle weighs 290kg and adopts the cylinder design of one-piece integral casting pump, which increases the durability and stability of the equipment.
Convenient transportation: The wooden box weighs about 300kg, which is convenient for transportation and storage.
Applicable scenarios
Warehousing and logistics centers: Suitable for warehouses that require customized width forks, especially for operation between narrow aisles and high-density shelves.
Manufacturing factories: Suitable for material handling and inventory management of various production lines, especially heavy materials.
Supermarkets and large shopping malls: Play an important role in environments that require fast and precise handling.
Ports and docks: Adapt to the operation scenes of efficient handling and stacking of heavy goods.
Summary
The RL3T-EPT08 3-ton electric forklift is an efficient, sturdy and safe handling equipment designed for specific needs. Its customizable width design and strong load-bearing capacity enable it to perform well in various industrial and commercial applications. Whether in warehousing and logistics centers, manufacturing factories, supermarkets or port terminals, this forklift is an indispensable and efficient operation assistant.
