Specification:
Loadable tonnage: 3 tons
Vehicle size: 1700*440*920mm
Single wooden box packaging size: 2280*810*920mm
Body weight: 270kg
Wooden box weight: about 300kg
Battery specifications:
Type: Lead-acid battery
Dimensions (length × width × height): 317*275*201mm
Capacity: 48V 32Ah
Weight: 36.6KG
Quantity: 1 set of 4 pieces
Other parameters:
|

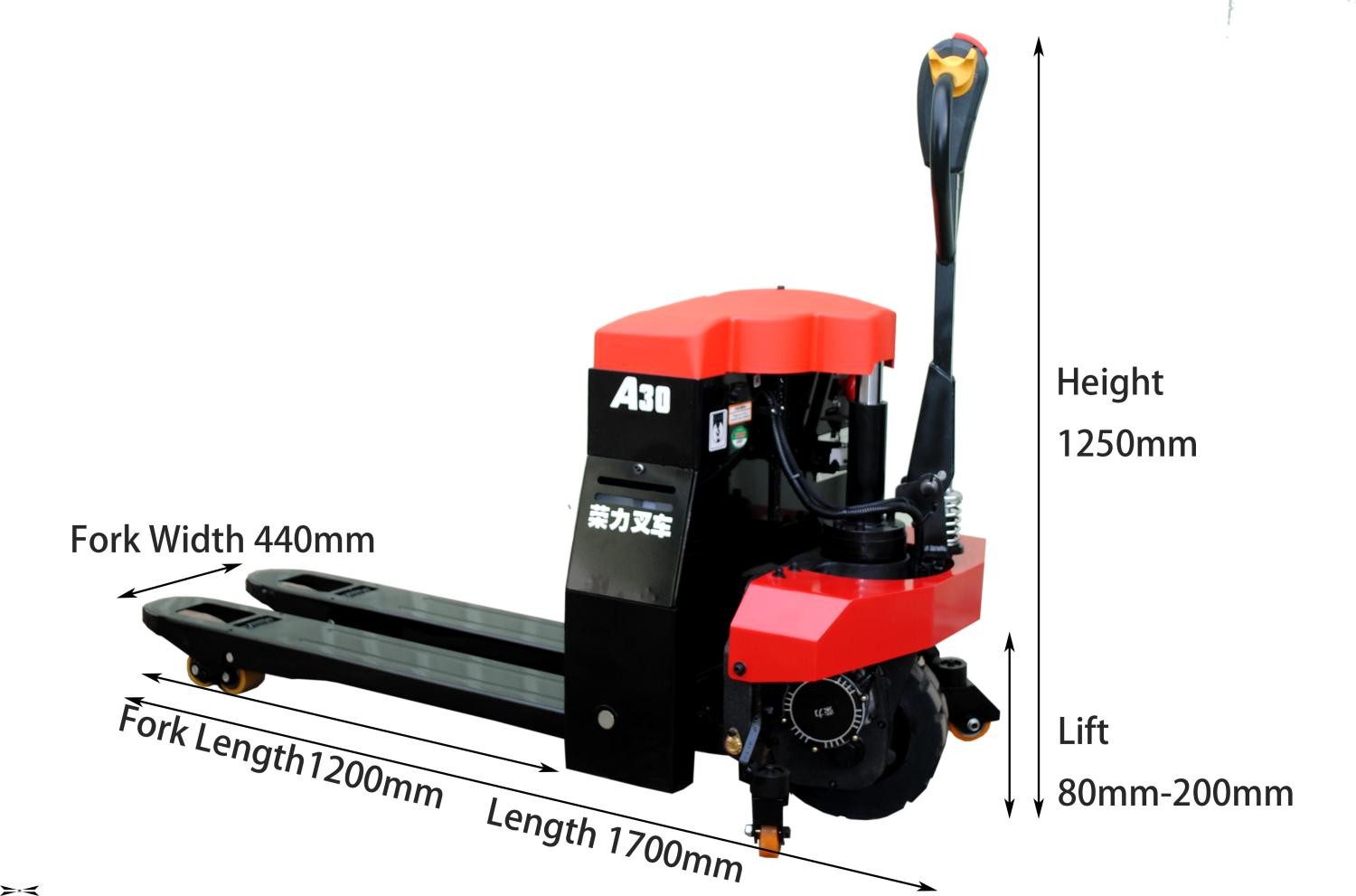

Vehicle size:1700*685*1250 |
Driving wheel size: 300*100mm |
|
Fork length: 1200mm |
Fork outer width: 1000mm |
|
Maximum height of fork surface from ground: 200mm |
Minimum height of fork surface from ground: 80mm |
|
Empty speed: 5KM/H |
Maximum design load: 3.03 tons |
|
Motor power: 1500W |
Controller power: 1500W |
|
Lifting speed: no load/full load 45/40 |
Descending speed: no load/full load 60/65 |
|
Vehicle type: Pedestrian |
Lifting method: fully electric |
|
Vehicle mass: 270Kg |
Braking method: automatic electronic brake |
|
Slope: no load/full load 30°/10° |
Oil cylinder: one-piece integral casting pump |
Product introduction

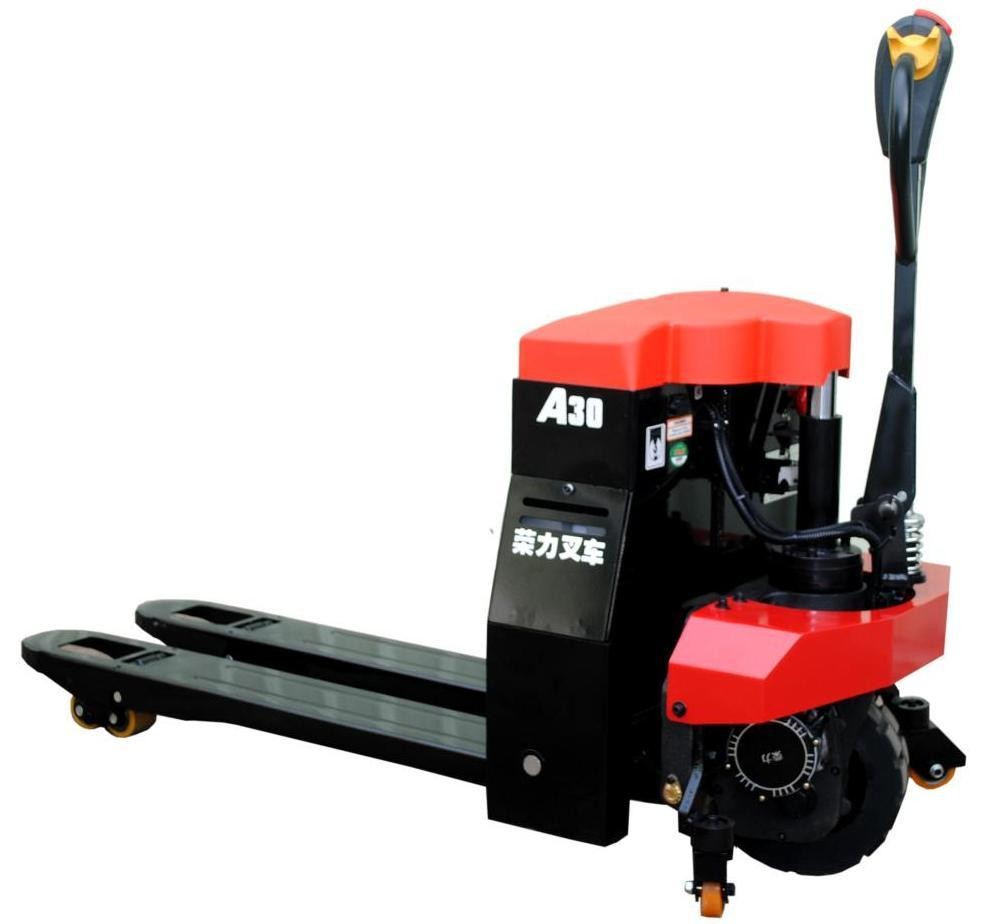

Model: RL3T-EPT440 - 3-ton electric forklift (customized fork width 440mm, length 1200mm)
RL3T-EPT440 is a 3-ton electric forklift designed for special operation needs. Its customized fork width is 440mm and length is 1200mm. The forklift combines efficient electric drive, sturdy structure and excellent safety performance, suitable for heavy-duty handling needs in a variety of industrial and commercial environments.
Main features
Customized design: Fork width 440mm, length 1200mm, to meet specific handling needs.
Strong load capacity: Maximum load capacity of 3 tons, suitable for various heavy material handling.
Compact structure: The vehicle size is 17006851250mm, suitable for operation in narrow spaces.
Efficient battery system: Equipped with 48V 32Ah lead-acid batteries, a group of 4, to provide long-term continuous operation capability.
High-performance motor: 1500W motor and 1500W controller to ensure strong power and stable performance.
All-electric lifting: The lifting speed is 45mm/s when empty and 40mm/s when fully loaded, which improves work efficiency.
Safe and reliable: Automatic electronic brake system to ensure safe operation.
Excellent climbing ability: Maximum climbing gradient of 30° when empty and 10° when fully loaded, suitable for various working environments.
Convenient transportation: The packaging size of a single wooden box is 17306951265mm, and the weight of the wooden box is about 300kg, which is convenient for transportation and storage.
Applicable scenarios
Warehousing and logistics centers: Suitable for warehouses that require precise handling, especially narrow aisles and high-density shelves.
Manufacturing factories: Suitable for material handling and inventory management of various production lines, especially heavy materials.
Supermarkets and large shopping malls: Play an important role in environments that require fast and precise handling.
Ports and docks: Adapt to operating scenarios for efficient handling and stacking of heavy goods.
Summary
RL3T-EPT440 3-ton electric forklift is an efficient, sturdy and safe handling equipment designed for specific needs. Its customized fork design and strong load capacity enable it to perform well in various industrial and commercial applications. Whether in a warehousing and logistics center, a manufacturing factory, a supermarket, or a port terminal, this forklift is an indispensable and efficient operation assistant.
