Specification:
Loadable tonnage: 3 tons
Vehicle size: 1700*685*1250mm
Single wooden box packaging size: 1730*695*1265mm (L-shaped packaging)
Body weight: 270kg
Wooden box weight: about 300kg
Battery specifications:
Type: Lead-acid battery
Dimensions (length × width × height): 317*275*201mm
Capacity: 48V 32Ah
Weight: 36.6KG
Quantity: 1 set of 4 pieces
Other parameters:
|

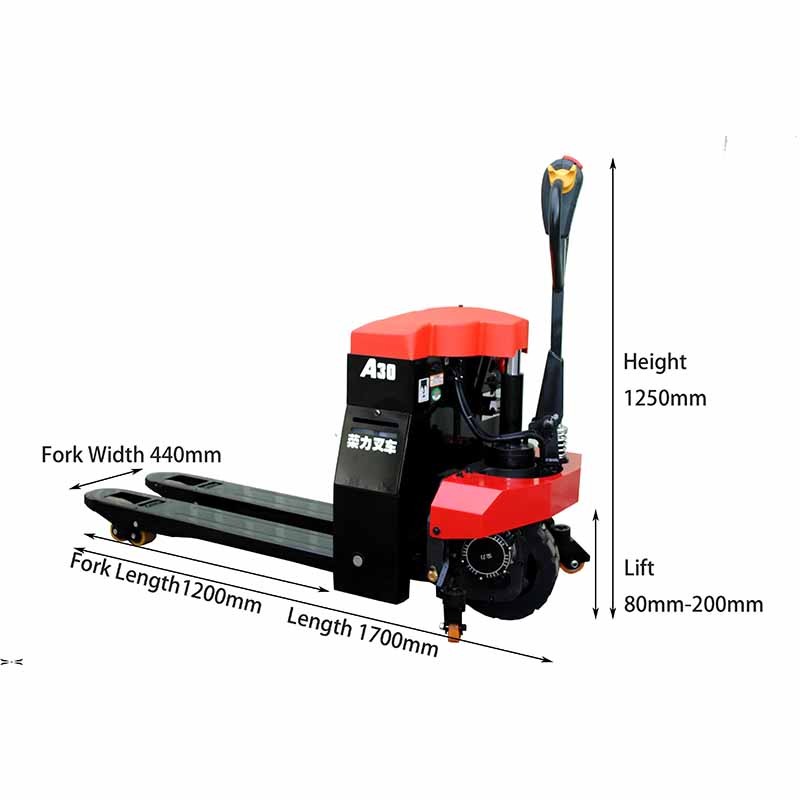

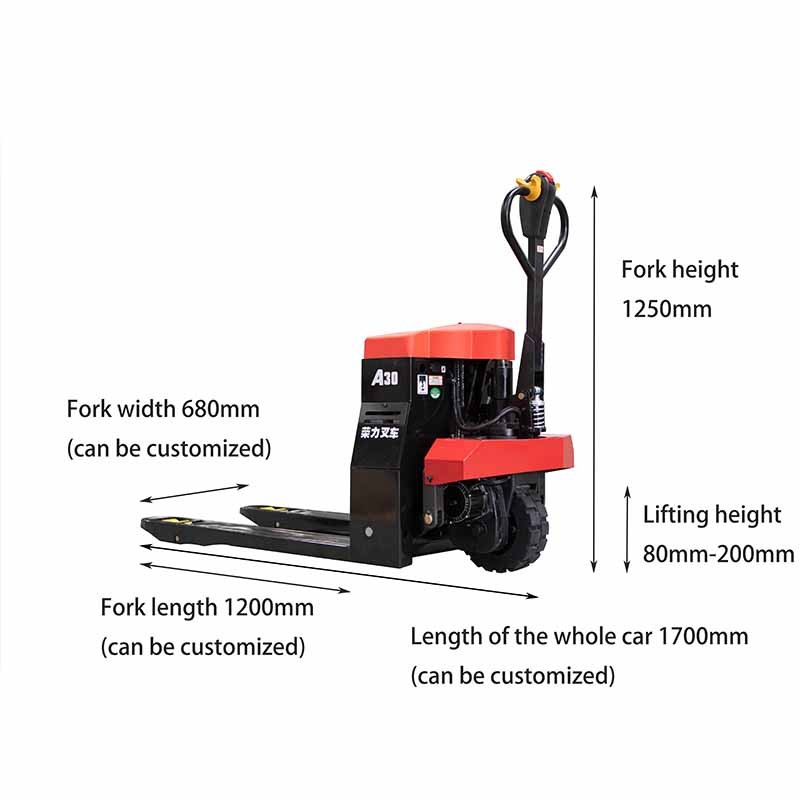

Vehicle size:1700*685*1250 |

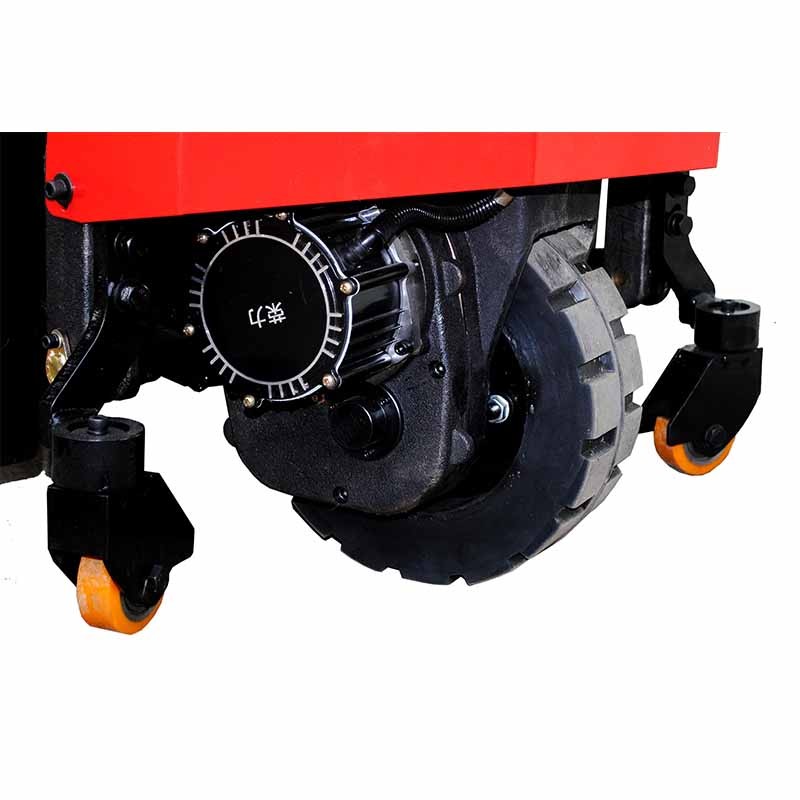

Driving wheel size: 300*100mm |
|
Fork length: 1200mm |
Fork outer width: 685/550mm |
|
Maximum height of fork surface from ground: 200mm |
Minimum height of fork surface from ground: 80mm |
|
Empty speed: 5KM/H |
Maximum design load: 3.03 tons |
|
Motor power: 1500W |
Controller power: 1500W |
|
Lifting speed: no load/full load 45/40 |
Descending speed: no load/full load 60/65 |
|
Vehicle type: Pedestrian |
Lifting method: fully electric |
|
Vehicle mass: 270Kg |
Braking method: automatic electronic brake |
|
Slope: no load/full load 30°/10° |

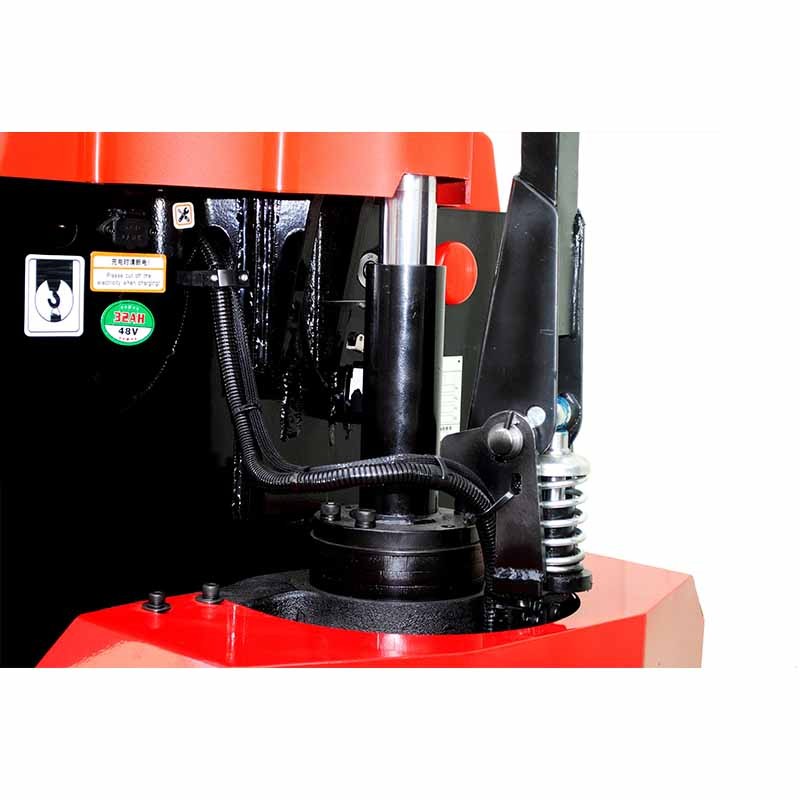

Oil cylinder: one-piece integral casting pump |
Product introduction

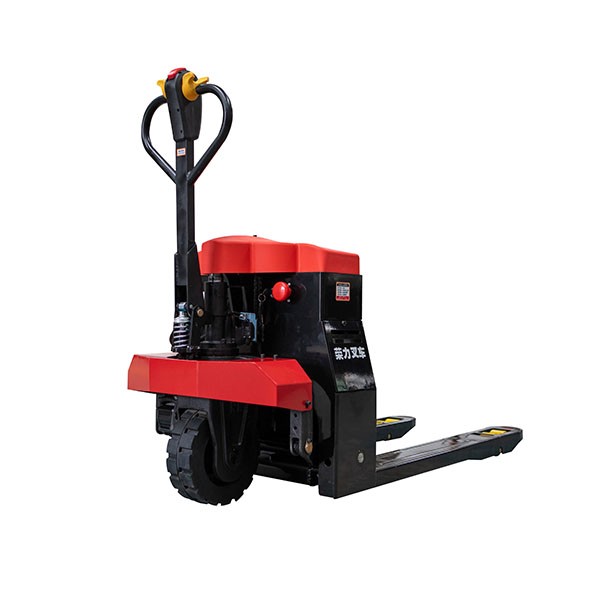

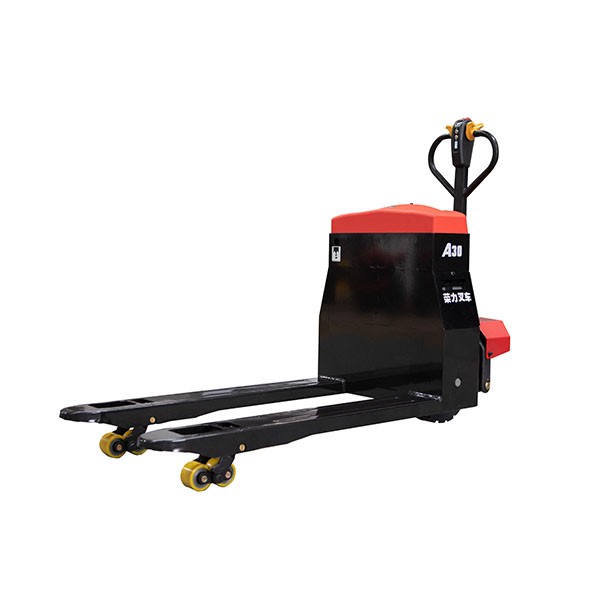

This is an optimized web page content introducing [RL3T-001 - 3-ton off-road electric forklift]
3-ton all-terrain wheel electric forklift is a powerful and efficient 3-ton all-terrain wheel electric forklift, specially designed for the needs of working in various terrains. Whether it’s a muddy construction site, rugged mountain roads, or uneven warehouse floors, this forklift can handle it with ease.
main feature
Powerful load capacity: This electric forklift can carry up to 3 tons of cargo to meet your daily moving and loading tasks.
Off-road wheel design: Equipped with wear-resistant and durable off-road tires to ensure smooth operation in various terrains and improve operating efficiency.
Compact size: With a volume of 1700mm (length) × 685mm (width) × 1250mm (height), it can be operated flexibly even in a small space.
Sturdy body: The body weighs 270kg and has a solid structure to ensure durability for long-term use.
Environmentally friendly battery: Equipped with a high-performance lead-acid battery to provide long-term continuous power while reducing environmental pollution.
Battery type: Lead-acid battery
Battery size: 1000mm × 500mm × 400mm
Battery capacity: 48V 32Ah
Applicable scene
The 3-ton off-road electric forklift is suitable for handling various complex terrains, including construction sites, farmland, logistics centers and warehouses. Its powerful off-road capabilities and efficient electric drive system make it your best choice for efficient handling.
Other parameters
Driving wheel size: 300mm × 100mm
Maximum design load: 3.03 tons
Motor power: 1500W
Controller power: 1500W
Summarize
By choosing a 3-ton all-terrain electric forklift, you will have a reliable handling tool that can not only cope with various harsh working environments, but also improve your work efficiency and reduce labor costs. Contact us now for more product details and offers!
