Electric Stacker
Specification:
Loadable tonnage: 3 tons
Vehicle size: 1830*860*1600
Wooden box packaging size: 1845*875*1615mm (estimated L-shaped packaging)
Body weight: 523kg
Wooden box weight: about 560kg

Battery specifications:
Type: Lead-acid batteryType: Lead-acid batteryType: Lead-acid battery
Dimensions (length × width × height): 317*275*201mm
Capacity: 48V 32Ah
Weight: 36.6KG
Quantity: 1 set of 4 pieces

Other parameters:

Vehicle size: 1830*860*1600	Carrying capacity: 1.5 tons/2 tons
Fork length: 1200mm	Fork inner width: 685mm
Maximum fork clearance from the ground: 2M/2.5M/3M	Minimum height of fork surface from ground: 80mm
Empty speed: 5KM/H	Fully loaded driving speed: 4.5KM/H
Motor power: 2200W	Controller power: 1500W
Lifting speed: no load/full load 45/40	Descending speed: no load/full load 60/65
Vehicle type: Pedestrian	Lifting method: fully electric
Vehicle mass: 523Kg	Braking method: Fully automatic electronic brake
Slope: no load/full load 10°/5°	Motor type: DC brushless
Battery: 48V32AH lead-acid battery	Oil cylinder: one-piece integral casting pump

Product introduction

This is an optimized web page content introducing [RL1.5T-006 - Stacker Truck]
RL1.5T-006 - Stacker
Product introduction
The RL1.5T-006 stacker is an efficient and reliable material handling equipment designed for the stacking and handling needs of various warehouses and factories. This stacker truck combines excellent performance with convenient operation to help you cope with busy work environments with ease.

Main Feature

Powerful load capacity: RL1.5T-006 stacker can carry goods up to 1500kg, meeting daily stacking and handling needs.
Efficient lifting: Equipped with a powerful electric lifting system, it can quickly lift and lower goods and improve work efficiency.

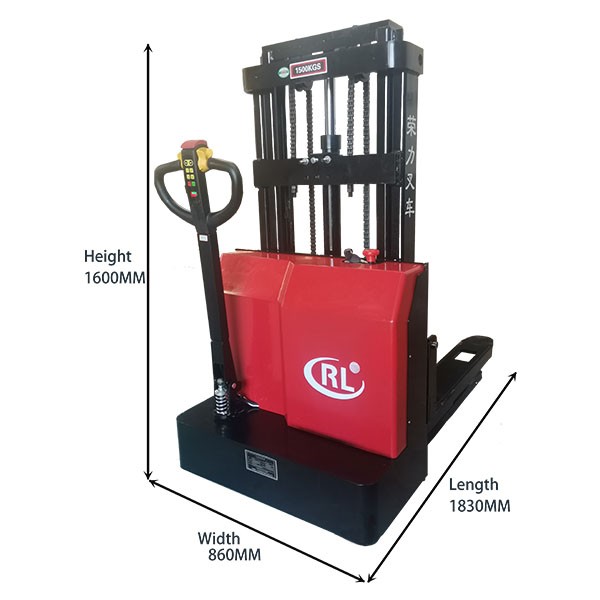

Compact design: The overall vehicle size is 1830mm (length) × 860mm (width) × 1600mm (height), which can be operated flexibly in a narrow work space.
Sturdy body: The body structure is sturdy to ensure durability for long-term use.
High-efficiency battery: Equipped with lead-acid battery, providing stable and long-lasting power.

Specification

Loadable tonnage: 1.5 tons / 2 tons
Overall vehicle size: 1830mm × 860mm × 1600mm
Wooden box packaging size: 1845mm × 875mm × 1615mm (estimated L-shaped packaging)
Body weight: 523kg
Wooden box weight: about 560kg
Battery specifications:
Type: Lead-acid battery
Dimensions (length × width × height): 317mm × 275mm × 201mm
Capacity: 48V 32Ah
Weight: 36.6kg
Quantity: 1 set of 4 pieces

Other parameters

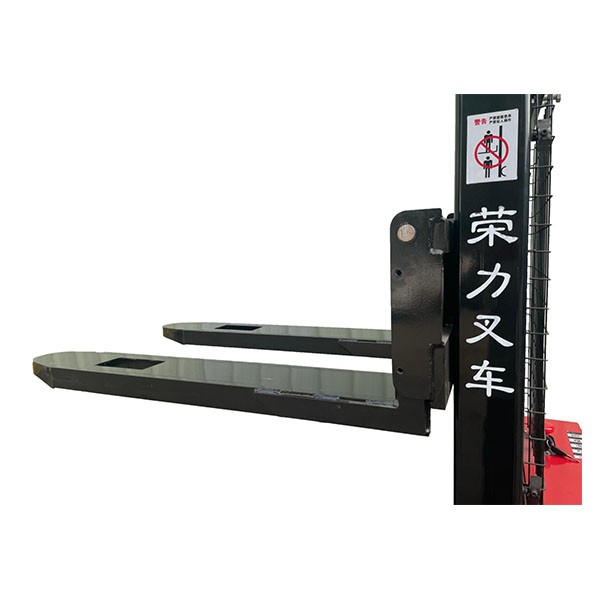

Fork length: 1200mm
Fork outer width: 685mm
Maximum fork clearance from the ground: 2M / 2.5M / 3M
Minimum fork surface clearance: 80mm
Empty vehicle driving speed: 5KM/H
Fully loaded driving speed: 4.5KM/H
Motor power: 2200W
Controller power: 1500W
Lifting speed (no load/full load): 45/40 mm/s
Descending speed (no load/full load): 60/65 mm/s
Vehicle type: Fully automatic pedestrian
Lifting method: fully electric
Vehicle mass: 523kg
Braking method: fully automatic electronic braking
Slope (empty/full load): 10°/5°
Motor type: DC brushless
Battery: 48V 32Ah lead-acid battery
Oil cylinder: one-piece integral casting pump
Applicable scene
The RL1.5T-006 stacker is suitable for stacking and handling work in various industrial and commercial sites, including warehouses, factories, distribution centers and logistics parks, etc. Its powerful load-carrying capacity and efficient lifting system make it the best choice for your efficient operations.

Product advantages

Efficient operation: The powerful motor and high-capacity lead-acid battery ensure that the stacker can operate efficiently in busy work environments.

Environmental protection and energy saving: using electric drive to reduce carbon emissions and comply with modern environmental protection standards.
Easy to operate: The design is user-friendly and easy to operate. Even novices can get started quickly and improve work efficiency.

Summarize

RL1.5T-006 - Stacker truck is your best tool for stacking and transporting in various industrial and commercial sites. It not only has excellent performance, but also has the advantages of environmental protection and energy saving, helping you improve production efficiency and reduce operating costs. Contact us today for more product details and offers!
