Specification:
Loadable tonnage: 3 tons
Vehicle size: 2000*1560*1700mm
Wooden box packaging size: 2030*1570*1715mm (estimated L-shaped packaging)
Body weight: 523kg
Wooden box weight: about 560kg
Battery specifications:
Type: Lead-acid battery
Dimensions (length × width × height): 317*275*201mm
Capacity: 48V 32Ah
Weight: 36.6KG
Quantity: 1 set of 4 pieces
Other parameters:
|
Vehicle size: 2000*1560*1700 |
Carrying capacity: 1.5 tons/2 tons |
|
Fork length: 1200mm |
Fork inner width: 685mm |
|
Maximum fork clearance from the ground: 2M/2.5M/3M |
Minimum height of fork surface from ground: 80mm |
|
Empty speed: 5KM/H |
Fully loaded driving speed: 4.5KM/H |
|
Motor power: 2200W |
Controller power: 1500W |
|
Lifting speed: no load/full load 45/40 |
Descending speed: no load/full load 60/65 |
|
Vehicle type: Pedestrian |
Lifting method: fully electric |
|
Vehicle mass: 523Kg |
Braking method: Fully automatic electronic brake |
|
Slope: no load/full load 10°/5° |
Motor type: DC brushless |
|
Battery: 48V32AH lead-acid battery |
Oil cylinder: one-piece integral casting pump |
Product introduction
This is an optimized web page content introducing [RL1.5T-007 - Off-road Stacker]
RL1.5T-007 - Off-road Stacker
Product introduction
The RL1.5T-007 off-road stacker is an efficient material handling equipment specially designed for complex terrain. It is suitable for stacking and handling operations in various harsh environments. With its excellent off-road performance and powerful lifting capacity, this stacker is ideal for warehouses, construction sites and outdoor operations.
Main Feature
Powerful load capacity: RL1.5T-007 off-road stacker can carry up to 1500kg of cargo to meet heavy-duty handling needs.Off-road capability: Equipped with large-size off-road tires, it can adapt to various complex terrains, such as mud, sand and uneven ground.

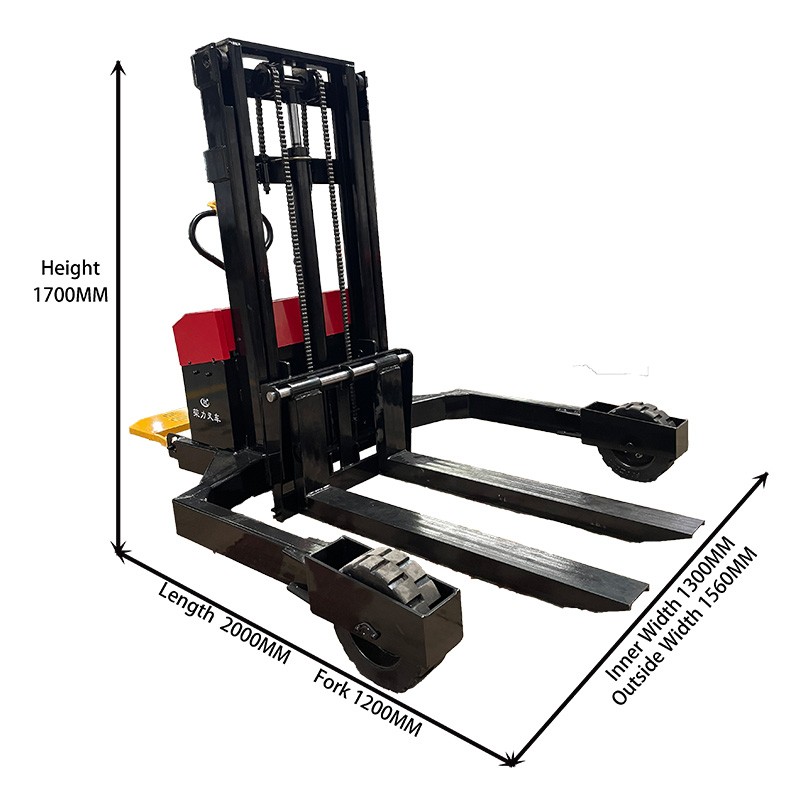

Compact design: The overall vehicle size is 2000mm (length) × 1560mm (width) × 1700mm (height), and it can be operated flexibly in a narrow work space.
Sturdy body: The body structure is sturdy to ensure durability for long-term use.
High-efficiency battery: Equipped with lead-acid battery, providing stable and long-lasting power.
Specification
Loadable tonnage: 3 tons
Overall vehicle size: 2000mm × 1560mm × 1700mm
Wooden box packaging size: 2030mm × 1570mm × 1715mm (estimated L-shaped packaging)
Body weight: 523kg
Wooden box weight: about 560kg
Battery specifications:
Type: Lead-acid battery
Dimensions (length × width × height): 317mm × 275mm × 201mm
Capacity: 48V 32Ah
Weight: 36.6kg
Quantity: 1 set of 4 pieces
Other parameters
Overall vehicle size: 2000mm × 1560mm × 1700mm
Carrying capacity: 1.5 tons/2 tons
Fork length: 1200mm
Fork outer width: 685mm
Maximum fork clearance from the ground: 2M / 2.5M / 3M
Minimum height of fork surface from ground: 80mm
Empty vehicle driving speed: 5KM/H
Fully loaded driving speed: 4.5KM/H
Motor power: 2200W
Controller power: 1500W
Lifting speed (no load/full load): 45/40 mm/s
Descending speed (no load/full load): 60/65 mm/s
Vehicle type: Fully automatic pedestrian
Lifting method: fully electric
Vehicle mass: 523kg
Braking method: fully automatic electronic braking
Slope (empty/full load): 10°/5°
Motor type: DC brushless
Battery: 48V 32Ah lead-acid battery
Oil cylinder: one-piece integral casting pump
Applicable scene
RL1.5T-007 off-road stacker is suitable for stacking and handling work in various complex terrains, including construction sites, farmland, forested areas and uneven warehouse floors. Its powerful load-carrying capacity and excellent off-road performance make it your best choice for efficient operations.
Product advantages
Efficient operation: The powerful motor and high-capacity lead-acid battery ensure that the stacker can operate efficiently in busy work environments.Off-road performance: Large-size off-road tire design enables the forklift to easily cope with various complex terrains, ensuring efficient and stable operations.
Environmental protection and energy saving: using electric drive to reduce carbon emissions and comply with modern environmental protection standards.
Easy to operate: The design is user-friendly and easy to operate. Even novices can get started quickly and improve work efficiency.
