Model 20: RL2T-ESC01- 2 tons electric stacker customized off-road
Loadable tonnage: 2 tons
Vehicle size: 1830*860*1600mm
Single wooden box packaging size: 2100*950*2200mm
Body weight: 666kg
Wooden box weight: about 680kg
Battery specifications:
Type: Lead-acid batteryType: lead-acid battery
Dimensions (length × width × height): 317*275*201mm
Capacity: 48V 32Ah
Weight: 36.6KG
Quantity: 1 set of 4
Other parameters:
|
Vehicle size:1830*860*1600mm |
Driving wheel size: 300*100mm |
|
Fork length: 1200mm |
Fork outer width: 685/550mm |
|
Maximum height of fork surface from ground: 2m |
Minimum height of fork surface from ground: 80mm |
|
Empty speed: 5KM/H |
Maximum design load: 3.03 tons |
|
Motor power: 1500W |
Controller power: 1500W |
|
Lifting speed: no load/full load 45/40 |
Descending speed: no load/full load 60/65 |
|
Vehicle type: Pedestrian |
Lifting method: fully electric |
|
Vehicle mass: 666Kg |
Braking method: automatic electronic brake |
|
Slope: no load/full load 30°/10° |
Oil cylinder: one-piece integral casting pump |
Product introduction

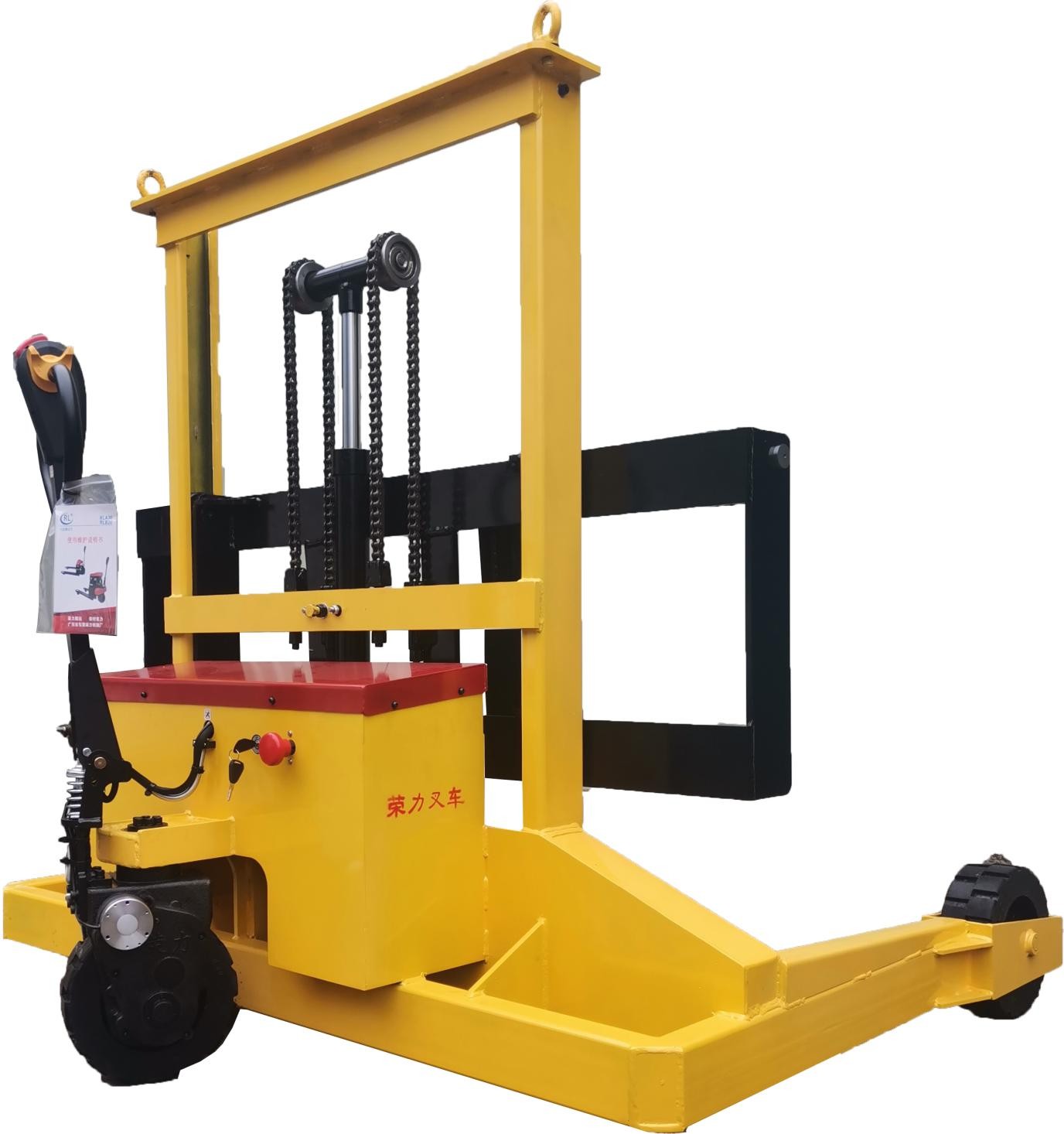

Model: RL2T-ESC01 - 2-ton electric stacker (customized lengthened and widened off-road)
RL2T-ESC01 is a 2-ton electric stacker designed for complex terrain and heavy-load handling needs. The vehicle has lengthening, widening and off-road functions, combined with an efficient electric drive system and a sturdy structure, and is suitable for heavy-load handling and stacking operations in a variety of harsh environments.
Main features

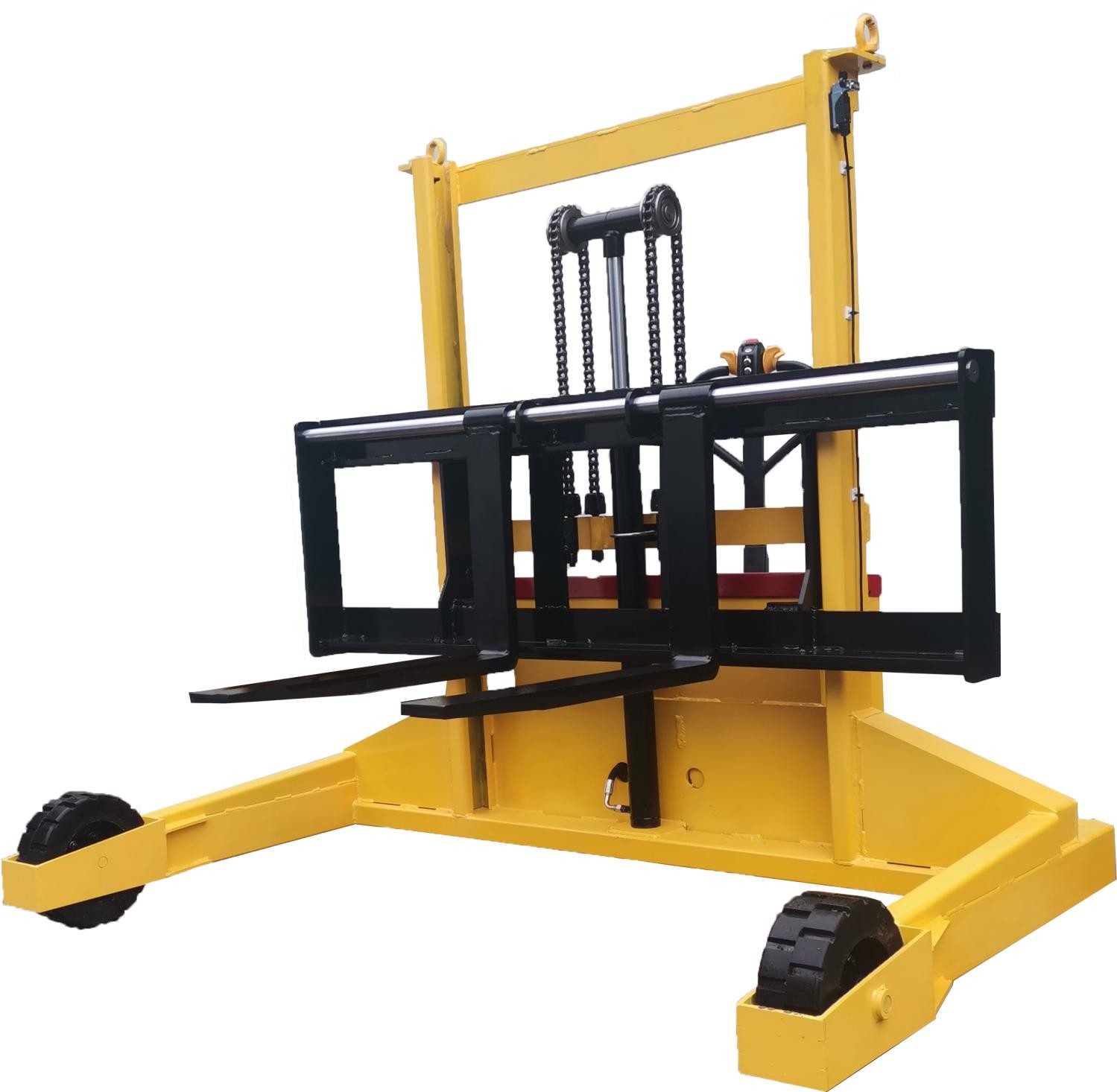

Customized lengthening and widening: the fork length is 1200mm, the outer width is 685/550mm, and it can meet the needs of various material handling.

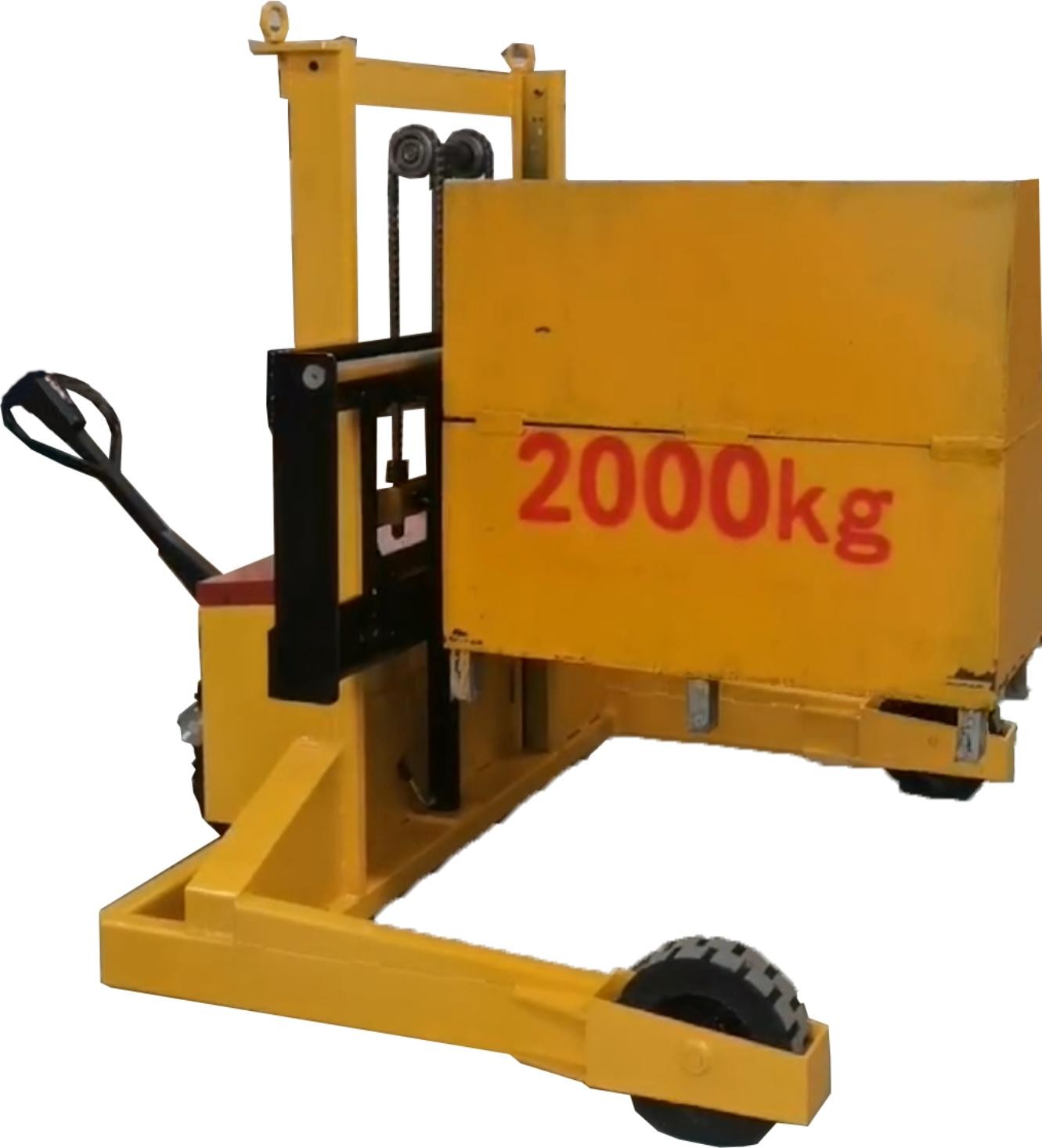

Strong load-bearing capacity: The maximum load capacity is 2 tons, which can cope with various heavy-duty handling tasks.
Efficient battery system: Equipped with 48V 32Ah lead-acid batteries, a group of 4, providing long-lasting endurance.
Powerful motor: 2200W motor and 1500W controller, providing strong power and stable performance.
Fully electric lifting: The lifting speed is 45mm/s when unloaded and 40mm/s when fully loaded, which improves work efficiency.
Excellent lifting capacity: The fork surface is up to 2000mm above the ground, suitable for high-position stacking operations.
Safety performance: Equipped with automatic electronic braking system to ensure safe operation.
Adapt to complex terrain: The off-road design enables it to operate efficiently on uneven ground.
Strong and durable: The vehicle weighs 666kg, and the cylinder design of the integrally molded integral casting pump is adopted to increase the durability and stability of the equipment.
Convenient transportation: The packaging size of a single wooden box is 21009502200mm, and the weight of the wooden box is about 680kg, which is convenient for transportation and storage.
Applicable scenarios
Construction sites: suitable for material handling and stacking operations on uneven ground.
Warehousing and logistics centers: especially suitable for warehouses that require high-level stacking and heavy-load handling.
Manufacturing plants: suitable for production line material handling and high-level stacking, especially heavy materials.
Farms and ranches: perform well in scenarios where heavy feed and supplies need to be handled and stacked.
Ports and docks: adapted to operating environments with complex terrain and efficient handling.
Summary
RL2T-ESC01 2-ton electric stacker is an efficient, sturdy and safe equipment designed for complex terrain and heavy-load handling. Its extended and widened design, excellent off-road performance and strong load capacity make it perform well in various industrial and commercial applications. Whether it is on a construction site, a warehouse logistics center, or on a farm and port dock, this stacker is an ideal choice for improving work efficiency and ensuring handling safety.
